Android10 StartService启动过程分析

这篇文章分析一下StartService 的整体启动流程

发布日期 2020-06-17

一、概述

前面已经介绍了详细介绍了管理Android四大剑客Activity、Service、Broadcast、ContentProvider的ActivityManagerService启动的详细流程,这里讲从应用startService的启动过程来分析AMS。

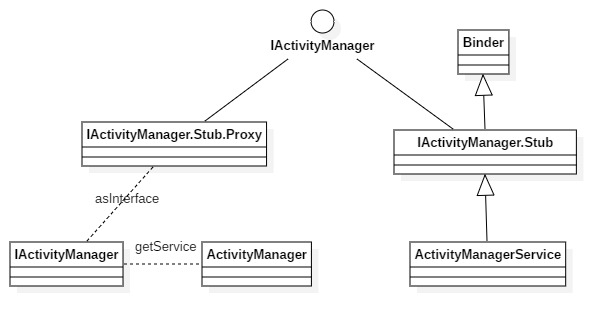

ActivityManagerService相关的类图如下:

在这里插入图片描述

启动服务通过startServie或者bindService即可,该过程如下:

当应用调用Andorid API方法startServie或者bindService来启动服务的过程,主要是AMS来完成的。

1.AMS通过socket通信方式向zygote进程请求创建用于承载服务进程的ActivityThread。如果启动服务运行在本地服务则不需要再次创建进程。

2.zygote通过fork的方法,将zygote进程复制升级新的进程,并将ActivityThread相关的资源加载到新进程。

3.AMS向新生成的ActivityThread进程,通过Binder方式发送创建服务的请求

4.ActivityThread启动本地运行服务。

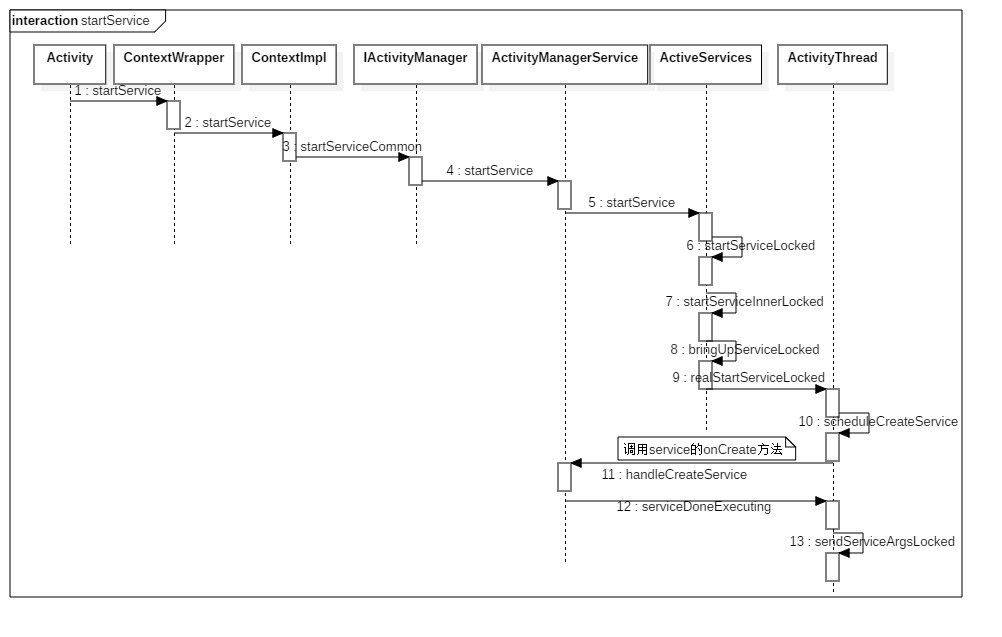

启动服务的流程如下:

在这里插入图片描述

二、启动服务进程端

在app中调用startService,调用的是ContextWrapper中的startService

1. CW.startService

[->ContextWrapper.java]

 @Override
 public ComponentName startService(Intent service) {
      //mBase为ContextImpl对象
     return mBase.startService(service);
 }

2. Cl.startService

[->ContextImpl.java]

 @Override
 public ComponentName startService(Intent service) {
       //system进程调用此方法时输出warn信息
        warnIfCallingFromSystemProcess();
        return startServiceCommon(service, false, mUser);
  }

3. CI.startServiceCommon

[->ContextImpl.java]

 private ComponentName startServiceCommon(Intent service, boolean requireForeground,
            UserHandle user) {
        try {
            //校验service,sdk大于等于21时,service中必须带Component和Package
            validateServiceIntent(service);
            service.prepareToLeaveProcess(this);
            //通过binder调用startService,见1.4节
            ComponentName cn = ActivityManager.getService().startService(
                mMainThread.getApplicationThread(), service, service.resolveTypeIfNeeded(
                            getContentResolver()), requireForeground,
                            getOpPackageName(), user.getIdentifier());
            if (cn != null) {
                if (cn.getPackageName().equals("!")) {
                    throw new SecurityException(
                            "Not allowed to start service " + service
                            + " without permission " + cn.getClassName());
                } else if (cn.getPackageName().equals("!!")) {
                    throw new SecurityException(
                            "Unable to start service " + service
                            + ": " + cn.getClassName());
                } else if (cn.getPackageName().equals("?")) {
                    throw new IllegalStateException(
                            "Not allowed to start service " + service + ": " + cn.getClassName());
                }
            }
            return cn;
        } catch (RemoteException e) {
            throw e.rethrowFromSystemServer();
        }
    }

4. AM.getService

这个方法和Android6.0不一样,没有了ActivityManagerNative和ActivityManagerProxy,直接通过IActivityManager.aidl生成的接口获得ActivityManagerService的代理。startService通过Binder机制,调用了服务器端AMS的startService方法。

    /**
     * @hide
     */
    @UnsupportedAppUsage
    public static IActivityManager getService() {
        return IActivityManagerSingleton.get();
    }

    @UnsupportedAppUsage
    private static final Singleton<IActivityManager> IActivityManagerSingleton =
            new Singleton<IActivityManager>() {
                @Override
                protected IActivityManager create() {
                    final IBinder b = ServiceManager.getService(Context.ACTIVITY_SERVICE);
                    //IAcitivityManager.aidl编译会生成相应的代理类和实现类
                    final IActivityManager am = IActivityManager.Stub.asInterface(b);
                    return am;
                }
            };

三、SystemServer端

5. AMS.startService

[->ActivityManagerService.java]

  @Override
    public ComponentName startService(IApplicationThread caller, Intent service,
            String resolvedType, boolean requireForeground, String callingPackage, int userId)
            throws TransactionTooLargeException {
        //当调用进程是孤立进程时抛出异常,孤立进程uid为99000~99999
        enforceNotIsolatedCaller("startService");
        // Refuse possible leaked file descriptors
        if (service != null && service.hasFileDescriptors() == true) {
            throw new IllegalArgumentException("File descriptors passed in Intent");
        }

        if (callingPackage == null) {
            throw new IllegalArgumentException("callingPackage cannot be null");
        }

        if (DEBUG_SERVICE) Slog.v(TAG_SERVICE,
                "*** startService: " + service + " type=" + resolvedType + " fg=" + requireForeground);
        synchronized(this) {
            //调用者pid
            final int callingPid = Binder.getCallingPid();
            //调用者uid
            final int callingUid = Binder.getCallingUid();
            final long origId = Binder.clearCallingIdentity();
            ComponentName res;
            try {
                //mServices为ActiveServices对象
                res = mServices.startServiceLocked(caller, service,
                        resolvedType, callingPid, callingUid,
                        requireForeground, callingPackage, userId);
            } finally {
                Binder.restoreCallingIdentity(origId);
            }
            return res;
        }
    }

startServiceLocked方法参数说明:

caller:IApplicationThread类型

service:Intent类型,包含运行的Service信息

resolvedType:String类型

callingPid:调用者pid

callingUid:调用者uid

requireForeground:是否需要前台运行,前面传的是false

callingPackage:调用该方法的包名

userId:用户id

6. AS.startServiceLocked

[->ActiveServices.java]

  ComponentName startServiceLocked(IApplicationThread caller, Intent service, String resolvedType,
            int callingPid, int callingUid, boolean fgRequired, String callingPackage, final int userId)
            throws TransactionTooLargeException {
        if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE, "startService: " + service
                + " type=" + resolvedType + " args=" + service.getExtras());

        final boolean callerFg;
        if (caller != null) {
            //进程不存在抛出异常
            final ProcessRecord callerApp = mAm.getRecordForAppLocked(caller);
            if (callerApp == null) {
                throw new SecurityException(
                        "Unable to find app for caller " + caller
                        + " (pid=" + callingPid
                        + ") when starting service " + service);
            }
            callerFg = callerApp.setSchedGroup != ProcessList.SCHED_GROUP_BACKGROUND;
        } else {
            callerFg = true;
        }
        //检查服务信息
        ServiceLookupResult res =
            retrieveServiceLocked(service, resolvedType, callingPackage,
                    callingPid, callingUid, userId, true, callerFg, false, false);
        if (res == null) {
            return null;
        }
        if (res.record == null) {
            return new ComponentName("!", res.permission != null
                    ? res.permission : "private to package");
        }

        ServiceRecord r = res.record;
        //检查是否存在启动服务的user
        if (!mAm.mUserController.exists(r.userId)) {
            Slog.w(TAG, "Trying to start service with non-existent user! " + r.userId);
            return null;
        }

        //是否运行后台启动服务
        // If we're starting indirectly (e.g. from PendingIntent), figure out whether
        // we're launching into an app in a background state.  This keys off of the same
        // idleness state tracking as e.g. O+ background service start policy.
        final boolean bgLaunch = !mAm.isUidActiveLocked(r.appInfo.uid);

        // If the app has strict background restrictions, we treat any bg service
        // start analogously to the legacy-app forced-restrictions case, regardless
        // of its target SDK version.
        boolean forcedStandby = false;
        if (bgLaunch && appRestrictedAnyInBackground(r.appInfo.uid, r.packageName)) {
            if (DEBUG_FOREGROUND_SERVICE) {
                Slog.d(TAG, "Forcing bg-only service start only for " + r.shortName
                        + " : bgLaunch=" + bgLaunch + " callerFg=" + callerFg);
            }
            forcedStandby = true;
        }
        //如果是要求前台启动,则允许每个应用操作
        // If this is a direct-to-foreground start, make sure it is allowed as per the app op.
        boolean forceSilentAbort = false;
        if (fgRequired) {
            final int mode = mAm.mAppOpsService.checkOperation(
                    AppOpsManager.OP_START_FOREGROUND, r.appInfo.uid, r.packageName);
            switch (mode) {
                case AppOpsManager.MODE_ALLOWED:
                case AppOpsManager.MODE_DEFAULT:
                    // All okay.
                    break;
                case AppOpsManager.MODE_IGNORED:
                    // Not allowed, fall back to normal start service, failing siliently
                    // if background check restricts that.
                    Slog.w(TAG, "startForegroundService not allowed due to app op: service "
                            + service + " to " + r.name.flattenToShortString()
                            + " from pid=" + callingPid + " uid=" + callingUid
                            + " pkg=" + callingPackage);
                    fgRequired = false;
                    forceSilentAbort = true;
                    break;
                default:
                    return new ComponentName("!!", "foreground not allowed as per app op");
            }
        }

        //如果不是前台启动,则检查服务是否可以启动
        // If this isn't a direct-to-foreground start, check our ability to kick off an
        // arbitrary service
        if (forcedStandby || (!r.startRequested && !fgRequired)) {
            // Before going further -- if this app is not allowed to start services in the
            // background, then at this point we aren't going to let it period.
            final int allowed = mAm.getAppStartModeLocked(r.appInfo.uid, r.packageName,
                    r.appInfo.targetSdkVersion, callingPid, false, false, forcedStandby);
            if (allowed != ActivityManager.APP_START_MODE_NORMAL) {
                Slog.w(TAG, "Background start not allowed: service "
                        + service + " to " + r.name.flattenToShortString()
                        + " from pid=" + callingPid + " uid=" + callingUid
                        + " pkg=" + callingPackage + " startFg?=" + fgRequired);
                if (allowed == ActivityManager.APP_START_MODE_DELAYED || forceSilentAbort) {
                    // In this case we are silently disabling the app, to disrupt as
                    // little as possible existing apps.
                    return null;
                }
                if (forcedStandby) {
                    // This is an O+ app, but we might be here because the user has placed
                    // it under strict background restrictions.  Don't punish the app if it's
                    // trying to do the right thing but we're denying it for that reason.
                    if (fgRequired) {
                        if (DEBUG_BACKGROUND_CHECK) {
                            Slog.v(TAG, "Silently dropping foreground service launch due to FAS");
                        }
                        return null;
                    }
                }
                // This app knows it is in the new model where this operation is not
                // allowed, so tell it what has happened.
                UidRecord uidRec = mAm.mActiveUids.get(r.appInfo.uid);
                return new ComponentName("?", "app is in background uid " + uidRec);
            }
        }

        //前台服务判断,小于android10.0 则fgRequired为false
        // At this point we've applied allowed-to-start policy based on whether this was
        // an ordinary startService() or a startForegroundService().  Now, only require that
        // the app follow through on the startForegroundService() -> startForeground()
        // contract if it actually targets O+.
        if (r.appInfo.targetSdkVersion < Build.VERSION_CODES.O && fgRequired) {
            if (DEBUG_BACKGROUND_CHECK || DEBUG_FOREGROUND_SERVICE) {
                Slog.i(TAG, "startForegroundService() but host targets "
                        + r.appInfo.targetSdkVersion + " - not requiring startForeground()");
            }
            fgRequired = false;
        }

        NeededUriGrants neededGrants = mAm.checkGrantUriPermissionFromIntentLocked(
                callingUid, r.packageName, service, service.getFlags(), null, r.userId);
        //如果权限需要授权,则不启动服务
        // If permissions need a review before any of the app components can run,
        // we do not start the service and launch a review activity if the calling app
        // is in the foreground passing it a pending intent to start the service when
        // review is completed.
        if (mAm.mPermissionReviewRequired) {
            // XXX This is not dealing with fgRequired!
            if (!requestStartTargetPermissionsReviewIfNeededLocked(r, callingPackage,
                    callingUid, service, callerFg, userId)) {
                return null;
            }
        }

        if (unscheduleServiceRestartLocked(r, callingUid, false)) {
            if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "START SERVICE WHILE RESTART PENDING: " + r);
        }
        r.lastActivity = SystemClock.uptimeMillis();
        r.startRequested = true;
        r.delayedStop = false;
        r.fgRequired = fgRequired;
        r.pendingStarts.add(new ServiceRecord.StartItem(r, false, r.makeNextStartId(),
                service, neededGrants, callingUid));

        if (fgRequired) {
            // We are now effectively running a foreground service.
            mAm.mAppOpsService.startOperation(AppOpsManager.getToken(mAm.mAppOpsService),
                    AppOpsManager.OP_START_FOREGROUND, r.appInfo.uid, r.packageName, true);
        }

        final ServiceMap smap = getServiceMapLocked(r.userId);
        boolean addToStarting = false;
        //非前台服务的管理
        if (!callerFg && !fgRequired && r.app == null
                && mAm.mUserController.hasStartedUserState(r.userId)) {
            ProcessRecord proc = mAm.getProcessRecordLocked(r.processName, r.appInfo.uid, false);
            if (proc == null || proc.curProcState > ActivityManager.PROCESS_STATE_RECEIVER) {
                // If this is not coming from a foreground caller, then we may want
                // to delay the start if there are already other background services
                // that are starting.  This is to avoid process start spam when lots
                // of applications are all handling things like connectivity broadcasts.
                // We only do this for cached processes, because otherwise an application
                // can have assumptions about calling startService() for a service to run
                // in its own process, and for that process to not be killed before the
                // service is started.  This is especially the case for receivers, which
                // may start a service in onReceive() to do some additional work and have
                // initialized some global state as part of that.
                if (DEBUG_DELAYED_SERVICE) Slog.v(TAG_SERVICE, "Potential start delay of "
                        + r + " in " + proc);
                //如果延迟启动
                if (r.delayed) {
                    // This service is already scheduled for a delayed start; just leave
                    // it still waiting.
                    if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE, "Continuing to delay: " + r);
                    return r.name;
                }
                //如果后台启动的服务数大于同一时间内启动的最大服务数,则加入延迟启动队列
                if (smap.mStartingBackground.size() >= mMaxStartingBackground) {
                    // Something else is starting, delay!
                    Slog.i(TAG_SERVICE, "Delaying start of: " + r);
                    smap.mDelayedStartList.add(r);
                    r.delayed = true;
                    return r.name;
                }
                if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE, "Not delaying: " + r);
                addToStarting = true;
            } else if (proc.curProcState >= ActivityManager.PROCESS_STATE_SERVICE) {
                // We slightly loosen when we will enqueue this new service as a background
                // starting service we are waiting for, to also include processes that are
                // currently running other services or receivers.
                //将服务加入到后台启动队列
                addToStarting = true;
                if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE,
                        "Not delaying, but counting as bg: " + r);
            } else if (DEBUG_DELAYED_STARTS) {
                StringBuilder sb = new StringBuilder(128);
                sb.append("Not potential delay (state=").append(proc.curProcState)
                        .append(' ').append(proc.adjType);
                String reason = proc.makeAdjReason();
                if (reason != null) {
                    sb.append(' ');
                    sb.append(reason);
                }
                sb.append("): ");
                sb.append(r.toString());
                Slog.v(TAG_SERVICE, sb.toString());
            }
        } else if (DEBUG_DELAYED_STARTS) {
            if (callerFg || fgRequired) {
                Slog.v(TAG_SERVICE, "Not potential delay (callerFg=" + callerFg + " uid="
                        + callingUid + " pid=" + callingPid + " fgRequired=" + fgRequired + "): " + r);
            } else if (r.app != null) {
                Slog.v(TAG_SERVICE, "Not potential delay (cur app=" + r.app + "): " + r);
            } else {
                Slog.v(TAG_SERVICE,
                        "Not potential delay (user " + r.userId + " not started): " + r);
            }
        }

        ComponentName cmp = startServiceInnerLocked(smap, service, r, callerFg, addToStarting);
        return cmp;
    }

可以看到,Android10.0对于后台服务的启动,要求更加的严格。如果allowed不等于APP_START_MODE_NORMAL,则后台服务将不允许被启动。

callerFg对用于标记前台还是后台,当发起方进程不等于SCHED_GROUP_BACKGROUND或者发起方为空,则callerFg= true,否则为false。

6.1 AMS.getAppStartModeLocked

[->ActivityManagerService.java]

  int getAppStartModeLocked(int uid, String packageName, int packageTargetSdk,
            int callingPid, boolean alwaysRestrict, boolean disabledOnly, boolean forcedStandby) {
        UidRecord uidRec = mActiveUids.get(uid);
        if (DEBUG_BACKGROUND_CHECK) Slog.d(TAG, "checkAllowBackground: uid=" + uid + " pkg="
                + packageName + " rec=" + uidRec + " always=" + alwaysRestrict + " idle="
                + (uidRec != null ? uidRec.idle : false));
        //不进入这里则会被允许启动后台服务,否则将会进入下一步的检查
        if (uidRec == null || alwaysRestrict || forcedStandby || uidRec.idle) {
            boolean ephemeral;
            if (uidRec == null) {
                ephemeral = getPackageManagerInternalLocked().isPackageEphemeral(
                        UserHandle.getUserId(uid), packageName);
            } else {
                ephemeral = uidRec.ephemeral;
            }

            if (ephemeral) {
                // We are hard-core about ephemeral apps not running in the background.
                return ActivityManager.APP_START_MODE_DISABLED;
            } else {
                if (disabledOnly) {
                    // The caller is only interested in whether app starts are completely
                    // disabled for the given package (that is, it is an instant app).  So
                    // we don't need to go further, which is all just seeing if we should
                    // apply a "delayed" mode for a regular app.
                    return ActivityManager.APP_START_MODE_NORMAL;
                }
                //alwaysRestrict为上面传过来的callerFg
                final int startMode = (alwaysRestrict)
                        ? appRestrictedInBackgroundLocked(uid, packageName, packageTargetSdk)
                        : appServicesRestrictedInBackgroundLocked(uid, packageName,
                                packageTargetSdk);
                if (DEBUG_BACKGROUND_CHECK) {
                    Slog.d(TAG, "checkAllowBackground: uid=" + uid
                            + " pkg=" + packageName + " startMode=" + startMode
                            + " onwhitelist=" + isOnDeviceIdleWhitelistLocked(uid, false)
                            + " onwhitelist(ei)=" + isOnDeviceIdleWhitelistLocked(uid, true));
                }
                //延时模式下如果发起方的进行存在则还是可以启动
                if (startMode == ActivityManager.APP_START_MODE_DELAYED) {
                    // This is an old app that has been forced into a "compatible as possible"
                    // mode of background check.  To increase compatibility, we will allow other
                    // foreground apps to cause its services to start.
                    if (callingPid >= 0) {
                        ProcessRecord proc;
                        synchronized (mPidsSelfLocked) {
                            proc = mPidsSelfLocked.get(callingPid);
                        }
                        if (proc != null &&
                                !ActivityManager.isProcStateBackground(proc.curProcState)) {
                            // Whoever is instigating this is in the foreground, so we will allow it
                            // to go through.
                            return ActivityManager.APP_START_MODE_NORMAL;
                        }
                    }
                }
                return startMode;
            }
        }
        return ActivityManager.APP_START_MODE_NORMAL;
    }

getAppStartModeLocked方法获取是否允许是否后台启动,一般callerFg为false,从而会进行服务再一次判断,普通的服务会进入appServicesRestrictedInBackgroundLocked方法进行判断如下:

6.2 AMS.appServicesRestrictedInBackgroundLocked

[->ActivityManagerService.java]

    // Service launch is available to apps with run-in-background exemptions but
    // some other background operations are not.  If we're doing a check
    // of service-launch policy, allow those callers to proceed unrestricted.
    int appServicesRestrictedInBackgroundLocked(int uid, String packageName, int packageTargetSdk)    {
       // Persistent进程
       // Persistent app?
        if (mPackageManagerInt.isPackagePersistent(packageName)) {
            if (DEBUG_BACKGROUND_CHECK) {
                Slog.i(TAG, "App " + uid + "/" + packageName
                        + " is persistent; not restricted in background");
            }
            return ActivityManager.APP_START_MODE_NORMAL;
        }
        //uid白名单
        // Non-persistent but background whitelisted?
        if (uidOnBackgroundWhitelist(uid)) {
            if (DEBUG_BACKGROUND_CHECK) {
                Slog.i(TAG, "App " + uid + "/" + packageName
                        + " on background whitelist; not restricted in background");
            }
            return ActivityManager.APP_START_MODE_NORMAL;
        }
        //电池白名单
        // Is this app on the battery whitelist?
        if (isOnDeviceIdleWhitelistLocked(uid, /*allowExceptIdleToo=*/ false)) {
            if (DEBUG_BACKGROUND_CHECK) {
                Slog.i(TAG, "App " + uid + "/" + packageName
                        + " on idle whitelist; not restricted in background");
            }
            return ActivityManager.APP_START_MODE_NORMAL;
        }

        // None of the service-policy criteria apply, so we apply the common criteria
        return appRestrictedInBackgroundLocked(uid, packageName, packageTargetSdk);
    }

可以看到对于persistent app、uid后台服务白名单、电池白名单里面都是可以启动后台服务的。

7. AS.startServiceInnerLocked

[->ActiveServices.java]

 ComponentName startServiceInnerLocked(ServiceMap smap, Intent service, ServiceRecord r,
            boolean callerFg, boolean addToStarting) throws TransactionTooLargeException {
        ServiceState stracker = r.getTracker();
        if (stracker != null) {
            stracker.setStarted(true, mAm.mProcessStats.getMemFactorLocked(), r.lastActivity);
        }
        r.callStart = false;
        synchronized (r.stats.getBatteryStats()) {
            //用于耗电统计,开启允许状态
            r.stats.startRunningLocked();
        }
        String error = bringUpServiceLocked(r, service.getFlags(), callerFg, false, false);
        if (error != null) {
            return new ComponentName("!!", error);
        }

        if (r.startRequested && addToStarting) {
            boolean first = smap.mStartingBackground.size() == 0;
            smap.mStartingBackground.add(r);
            r.startingBgTimeout = SystemClock.uptimeMillis() + mAm.mConstants.BG_START_TIMEOUT;
            if (DEBUG_DELAYED_SERVICE) {
                RuntimeException here = new RuntimeException("here");
                here.fillInStackTrace();
                Slog.v(TAG_SERVICE, "Starting background (first=" + first + "): " + r, here);
            } else if (DEBUG_DELAYED_STARTS) {
                Slog.v(TAG_SERVICE, "Starting background (first=" + first + "): " + r);
            }
            if (first) {
                smap.rescheduleDelayedStartsLocked();
            }
        } else if (callerFg || r.fgRequired) {
            smap.ensureNotStartingBackgroundLocked(r);
        }

        return r.name;
    }

8.AS.bringUpServiceLocked

[->ActiveServices.java]

 private String bringUpServiceLocked(ServiceRecord r, int intentFlags, boolean execInFg,
            boolean whileRestarting, boolean permissionsReviewRequired)
            throws TransactionTooLargeException {
        //Slog.i(TAG, "Bring up service:");
        //r.dump("  ");

        if (r.app != null && r.app.thread != null) {
            //调用service.onStartCommand过程
            sendServiceArgsLocked(r, execInFg, false);
            return null;
        }

        if (!whileRestarting && mRestartingServices.contains(r)) {
            //等待延迟重启的过程则直接返回
            // If waiting for a restart, then do nothing.
            return null;
        }

        if (DEBUG_SERVICE) {
            Slog.v(TAG_SERVICE, "Bringing up " + r + " " + r.intent + " fg=" + r.fgRequired);
        }
        //启动service前,把service从启动服务队列中移除
        // We are now bringing the service up, so no longer in the
        // restarting state.
        if (mRestartingServices.remove(r)) {
            clearRestartingIfNeededLocked(r);
        }
        //service正在启动,将delayed设置为false
        // Make sure this service is no longer considered delayed, we are starting it now.
        if (r.delayed) {
            if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE, "REM FR DELAY LIST (bring up): " + r);
            getServiceMapLocked(r.userId).mDelayedStartList.remove(r);
            r.delayed = false;
        }
        //确保拥有服务的user已经启动,否则停止服务
        // Make sure that the user who owns this service is started.  If not,
        // we don't want to allow it to run.
        if (!mAm.mUserController.hasStartedUserState(r.userId)) {
            String msg = "Unable to launch app "
                    + r.appInfo.packageName + "/"
                    + r.appInfo.uid + " for service "
                    + r.intent.getIntent() + ": user " + r.userId + " is stopped";
            Slog.w(TAG, msg);
            bringDownServiceLocked(r);
            return msg;
        }
        //服务正在启动,设置package停止状态为false
        // Service is now being launched, its package can't be stopped.
        try {
            AppGlobals.getPackageManager().setPackageStoppedState(
                    r.packageName, false, r.userId);
        } catch (RemoteException e) {
        } catch (IllegalArgumentException e) {
            Slog.w(TAG, "Failed trying to unstop package "
                    + r.packageName + ": " + e);
        }

        final boolean isolated = (r.serviceInfo.flags&ServiceInfo.FLAG_ISOLATED_PROCESS) != 0;
        final String procName = r.processName;
        String hostingType = "service";
        ProcessRecord app;
        //如果不是孤立进程
        if (!isolated) {
            //根据uid和pid查询ProcessRecord
            app = mAm.getProcessRecordLocked(procName, r.appInfo.uid, false);
            if (DEBUG_MU) Slog.v(TAG_MU, "bringUpServiceLocked: appInfo.uid=" + r.appInfo.uid
                        + " app=" + app);
            if (app != null && app.thread != null) {
                try {
                    app.addPackage(r.appInfo.packageName, r.appInfo.longVersionCode, mAm.mProcessStats);
                    //启动服务
                    realStartServiceLocked(r, app, execInFg);
                    return null;
                } catch (TransactionTooLargeException e) {
                    throw e;
                } catch (RemoteException e) {
                    Slog.w(TAG, "Exception when starting service " + r.shortName, e);
                }

                // If a dead object exception was thrown -- fall through to
                // restart the application.
            }
        } else {
            // If this service runs in an isolated process, then each time
            // we call startProcessLocked() we will get a new isolated
            // process, starting another process if we are currently waiting
            // for a previous process to come up.  To deal with this, we store
            // in the service any current isolated process it is running in or
            // waiting to have come up.
            app = r.isolatedProc;
            if (WebViewZygote.isMultiprocessEnabled()
                    && r.serviceInfo.packageName.equals(WebViewZygote.getPackageName())) {
                hostingType = "webview_service";
            }
        }
        //对于服务进程没有启动的情况
        // Not running -- get it started, and enqueue this service record
        // to be executed when the app comes up.
        if (app == null && !permissionsReviewRequired) {
            //启动服务所需要的进程
            if ((app=mAm.startProcessLocked(procName, r.appInfo, true, intentFlags,
                    hostingType, r.name, false, isolated, false)) == null) {
                String msg = "Unable to launch app "
                        + r.appInfo.packageName + "/"
                        + r.appInfo.uid + " for service "
                        + r.intent.getIntent() + ": process is bad";
                Slog.w(TAG, msg);
                //进程启动失败
                bringDownServiceLocked(r);
                return msg;
            }
            if (isolated) {
                r.isolatedProc = app;
            }
        }

        if (r.fgRequired) {
            if (DEBUG_FOREGROUND_SERVICE) {
                Slog.v(TAG, "Whitelisting " + UserHandle.formatUid(r.appInfo.uid)
                        + " for fg-service launch");
            }
            mAm.tempWhitelistUidLocked(r.appInfo.uid,
                    SERVICE_START_FOREGROUND_TIMEOUT, "fg-service-launch");
        }

        if (!mPendingServices.contains(r)) {
            mPendingServices.add(r);
        }

        if (r.delayedStop) {
            // Oh and hey we've already been asked to stop!
            r.delayedStop = false;
            if (r.startRequested) {
                if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE,
                        "Applying delayed stop (in bring up): " + r);
                //停止服务
                stopServiceLocked(r);
            }
        }

        return null;
    }

当目标进程已经存在,则直接执行realStartServiceLocked

当目标进程不存在,则先执行startProcessLocked创建进程,经过层层调用最后会调用到AMS.attachApplicationLocked,然后再执行realStartServiceLocked。

对于非前台进程调用而需要启动的服务,如果已经有其他的后台服务正在启动,则可能希望延迟其启动,从而避免同时启动过多的进程(非必须)。

8.1 AMS.attachApplicationLocked

[->ActivityManagerService.java]

 @GuardedBy("this")
    private final boolean attachApplicationLocked(IApplicationThread thread,
            int pid, int callingUid, long startSeq) {
        ...
        thread.bindApplication(processName, appInfo, providers,
                        app.instr.mClass,
                        profilerInfo, app.instr.mArguments,
                        app.instr.mWatcher,
                        app.instr.mUiAutomationConnection, testMode,
                        mBinderTransactionTrackingEnabled, enableTrackAllocation,
                        isRestrictedBackupMode || !normalMode, app.persistent,
                        new Configuration(getGlobalConfiguration()), app.compat,
                        getCommonServicesLocked(app.isolated),
                        mCoreSettingsObserver.getCoreSettingsLocked(),
                        buildSerial, isAutofillCompatEnabled);

        //寻找所有需要在该进程中运行的服务
        // Find any services that should be running in this process...
        if (!badApp) {
            try {
                didSomething |= mServices.attachApplicationLocked(app, processName);
                checkTime(startTime, "attachApplicationLocked: after mServices.attachApplicationLocked");
            } catch (Exception e) {
                Slog.wtf(TAG, "Exception thrown starting services in " + app, e);
                badApp = true;
            }
        }
        ...
        return true;
    }

8.2 AS.attachApplicationLocked

[->ActiveServices.java]

  boolean attachApplicationLocked(ProcessRecord proc, String processName)
            throws RemoteException {
        boolean didSomething = false;
        //启动mPendingServices队列中,等待在该进程启动的服务
        // Collect any services that are waiting for this process to come up.
        if (mPendingServices.size() > 0) {
            ServiceRecord sr = null;
            try {
                for (int i=0; i<mPendingServices.size(); i++) {
                    sr = mPendingServices.get(i);
                    if (proc != sr.isolatedProc && (proc.uid != sr.appInfo.uid
                            || !processName.equals(sr.processName))) {
                        continue;
                    }

                    mPendingServices.remove(i);
                    i--;
                    //将当前服务的包信息加入到proc
                    proc.addPackage(sr.appInfo.packageName, sr.appInfo.longVersionCode,
                            mAm.mProcessStats);
                    //启动服务
                    realStartServiceLocked(sr, proc, sr.createdFromFg);
                    didSomething = true;
                    if (!isServiceNeededLocked(sr, false, false)) {
                        // We were waiting for this service to start, but it is actually no
                        // longer needed.  This could happen because bringDownServiceIfNeeded
                        // won't bring down a service that is pending...  so now the pending
                        // is done, so let's drop it.
                        bringDownServiceLocked(sr);
                    }
                }
            } catch (RemoteException e) {
                Slog.w(TAG, "Exception in new application when starting service "
                        + sr.shortName, e);
                throw e;
            }
        }
        //对于正在等待重启并需要运行在该进程中的服务,现在是启动的好时机
        // Also, if there are any services that are waiting to restart and
        // would run in this process, now is a good time to start them.  It would
        // be weird to bring up the process but arbitrarily not let the services
        // run at this point just because their restart time hasn't come up.
        if (mRestartingServices.size() > 0) {
            ServiceRecord sr;
            for (int i=0; i<mRestartingServices.size(); i++) {
                sr = mRestartingServices.get(i);
                if (proc != sr.isolatedProc && (proc.uid != sr.appInfo.uid
                        || !processName.equals(sr.processName))) {
                    continue;
                }
                mAm.mHandler.removeCallbacks(sr.restarter);
                mAm.mHandler.post(sr.restarter);
            }
        }
        return didSomething;
    }

9.AS.realStartServiceLocked

[->ActiveServices.java]

private final void realStartServiceLocked(ServiceRecord r,
            ProcessRecord app, boolean execInFg) throws RemoteException {
        if (app.thread == null) {
            throw new RemoteException();
        }
        if (DEBUG_MU)
            Slog.v(TAG_MU, "realStartServiceLocked, ServiceRecord.uid = " + r.appInfo.uid
                    + ", ProcessRecord.uid = " + app.uid);
        r.app = app;
        r.restartTime = r.lastActivity = SystemClock.uptimeMillis();

        final boolean newService = app.services.add(r);
        //发送delay消息
        bumpServiceExecutingLocked(r, execInFg, "create");
        mAm.updateLruProcessLocked(app, false, null);
        updateServiceForegroundLocked(r.app, /* oomAdj= */ false);
        mAm.updateOomAdjLocked();

        boolean created = false;
        try {
            if (LOG_SERVICE_START_STOP) {
                String nameTerm;
                int lastPeriod = r.shortName.lastIndexOf('.');
                nameTerm = lastPeriod >= 0 ? r.shortName.substring(lastPeriod) : r.shortName;
                EventLogTags.writeAmCreateService(
                        r.userId, System.identityHashCode(r), nameTerm, r.app.uid, r.app.pid);
            }
            synchronized (r.stats.getBatteryStats()) {
                r.stats.startLaunchedLocked();
            }
            mAm.notifyPackageUse(r.serviceInfo.packageName,
                                 PackageManager.NOTIFY_PACKAGE_USE_SERVICE);
            app.forceProcessStateUpTo(ActivityManager.PROCESS_STATE_SERVICE);
            //服务进入onCreate
            app.thread.scheduleCreateService(r, r.serviceInfo,
                    mAm.compatibilityInfoForPackageLocked(r.serviceInfo.applicationInfo),
                    app.repProcState);
            r.postNotification();
            created = true;
        } catch (DeadObjectException e) {
            //应用死亡处理
            Slog.w(TAG, "Application dead when creating service " + r);
            mAm.appDiedLocked(app);
            throw e;
        } finally {
            if (!created) {
                // Keep the executeNesting count accurate.
                final boolean inDestroying = mDestroyingServices.contains(r);
                serviceDoneExecutingLocked(r, inDestroying, inDestroying);
                // Cleanup.
                if (newService) {
                    app.services.remove(r);
                    r.app = null;
                }

                // Retry.
                if (!inDestroying) {
                    scheduleServiceRestartLocked(r, false);
                }
            }
        }

        if (r.whitelistManager) {
            app.whitelistManager = true;
        }
        requestServiceBindingsLocked(r, execInFg);
        updateServiceClientActivitiesLocked(app, null, true);
        // If the service is in the started state, and there are no
        // pending arguments, then fake up one so its onStartCommand() will
        // be called.
        if (r.startRequested && r.callStart && r.pendingStarts.size() == 0) {
            r.pendingStarts.add(new ServiceRecord.StartItem(r, false, r.makeNextStartId(),
                    null, null, 0));
        }
        //服务进入onStartCommand
        sendServiceArgsLocked(r, execInFg, true);

        if (r.delayed) {
            if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE, "REM FR DELAY LIST (new proc): " + r);
            getServiceMapLocked(r.userId).mDelayedStartList.remove(r);
            r.delayed = false;
        }

        if (r.delayedStop) {
            // Oh and hey we've already been asked to stop!
            r.delayedStop = false;
            if (r.startRequested) {
                //停止服务
                if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE,
                        "Applying delayed stop (from start): " + r);
                stopServiceLocked(r);
            }
        }
    }

bumpServiceExecutingLocked会发送一个延迟处理的消息SERVICE_TIMEOUT_MSG。在方法scheduleCreateService执行完成,如果onCreate回调执行完成后,便会remove掉该消息。但如果没有在延时的时间内移除掉消息,则会进入到service timeout流程

9.1 AS.bumpServiceExecutingLocked

[->ActiveServices.java]

 private final void bumpServiceExecutingLocked(ServiceRecord r, boolean fg, String why) {
        if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, ">>> EXECUTING "
                + why + " of " + r + " in app " + r.app);
        else if (DEBUG_SERVICE_EXECUTING) Slog.v(TAG_SERVICE_EXECUTING, ">>> EXECUTING "
                + why + " of " + r.shortName);

        // For b/34123235: Services within the system server won't start until SystemServer
        // does Looper.loop(), so we shouldn't try to start/bind to them too early in the boot
        // process. However, since there's a little point of showing the ANR dialog in that case,
        // let's suppress the timeout until PHASE_THIRD_PARTY_APPS_CAN_START.
        //
        // (Note there are multiple services start at PHASE_THIRD_PARTY_APPS_CAN_START too,
        // which technically could also trigger this timeout if there's a system server
        // that takes a long time to handle PHASE_THIRD_PARTY_APPS_CAN_START, but that shouldn't
        // happen.)
        boolean timeoutNeeded = true;
        if ((mAm.mBootPhase < SystemService.PHASE_THIRD_PARTY_APPS_CAN_START)
                && (r.app != null) && (r.app.pid == android.os.Process.myPid())) {
            //SystemServer还未进入到PHASE_THIRD_PARTY_APPS_CAN_START状态,则不能启动服务
            Slog.w(TAG, "Too early to start/bind service in system_server: Phase=" + mAm.mBootPhase
                    + " " + r.getComponentName());
            timeoutNeeded = false;
        }

        long now = SystemClock.uptimeMillis();
        if (r.executeNesting == 0) {
            r.executeFg = fg;
            ServiceState stracker = r.getTracker();
            if (stracker != null) {
                stracker.setExecuting(true, mAm.mProcessStats.getMemFactorLocked(), now);
            }
            if (r.app != null) {
                r.app.executingServices.add(r);
                r.app.execServicesFg |= fg;
                if (timeoutNeeded && r.app.executingServices.size() == 1) {
                    scheduleServiceTimeoutLocked(r.app);
                }
            }
        } else if (r.app != null && fg && !r.app.execServicesFg) {
            r.app.execServicesFg = true;
            if (timeoutNeeded) {
                scheduleServiceTimeoutLocked(r.app);
            }
        }
        r.executeFg |= fg;
        r.executeNesting++;
        r.executingStart = now;
    }

9.2 AS.scheduleServiceTimeoutLocked

[->ActiveServices.java]

 void scheduleServiceTimeoutLocked(ProcessRecord proc) {
        if (proc.executingServices.size() == 0 || proc.thread == null) {
            return;
        }
        Message msg = mAm.mHandler.obtainMessage(
                ActivityManagerService.SERVICE_TIMEOUT_MSG);
        msg.obj = proc;
        //超时后还没有移除SERVICE_TIMEOUT_MSG消息,则执行SERVICE_TIMEOUT流程
        mAm.mHandler.sendMessageDelayed(msg,
                proc.execServicesFg ? SERVICE_TIMEOUT : SERVICE_BACKGROUND_TIMEOUT);
    }

发送延迟消息SERVICE_TIMEOUT_MSG:

  • 对于前台服务,则超时为SERVICE_TIMEOUT=20s

  • 对于后台服务,则超时为SERVICE_BACKGROUND_TIMEOUT=SERVICE_TIMEOUT * 10

app.thread.scheduleCreateService通过Binder机制调用,IApplicationThread.aidl在编译时会生成代理类和实现类。通过IApplicationThread代理,调用到目标进程端的scheduleCreateService具体实现。

四、目标进程端

10.AT.scheduleCreateService

[->ActivityThread.java]

  public final void scheduleCreateService(IBinder token,
                ServiceInfo info, CompatibilityInfo compatInfo, int processState) {
            updateProcessState(processState, false);
            CreateServiceData s = new CreateServiceData();
            s.token = token;
            s.info = info;
            s.compatInfo = compatInfo;
            sendMessage(H.CREATE_SERVICE, s);
   }

该方法执行在ActivityThread线程。

10.1 AT.handleMessage

[->ActivityThread.java]

 public void handleMessage(Message msg) {
      ...
               case CREATE_SERVICE:
                     handleCreateService((CreateServiceData)msg.obj);
                     break;
                case BIND_SERVICE:
                    handleBindService((BindServiceData)msg.obj);
                    break;
                case UNBIND_SERVICE:
                    handleUnbindService((BindServiceData)msg.obj);
                    schedulePurgeIdler();
                    break;
                case SERVICE_ARGS:
                    handleServiceArgs((ServiceArgsData)msg.obj);//onStartCommand
                    break;
                case STOP_SERVICE:
                    handleStopService((IBinder)msg.obj);
                    schedulePurgeIdler();
                    break;
       ...
   }

11.AT.handleCreateService

[->ActivityThread.java]

    @UnsupportedAppUsage
    private void handleCreateService(CreateServiceData data) {
        //当应用处于后台即将进行gc,而此时回调到活动状态,则跳过本次gc
        // If we are getting ready to gc after going to the background, well
        // we are back active so skip it.
        unscheduleGcIdler();
        LoadedApk packageInfo = getPackageInfoNoCheck(
                data.info.applicationInfo, data.compatInfo);
        Service service = null;
        //通过反射创建目标服务对象
        try {
            java.lang.ClassLoader cl = packageInfo.getClassLoader();
            service = packageInfo.getAppFactory()
                    .instantiateService(cl, data.info.name, data.intent);
        } catch (Exception e) {
            if (!mInstrumentation.onException(service, e)) {
                throw new RuntimeException(
                    "Unable to instantiate service " + data.info.name
                    + ": " + e.toString(), e);
            }
        }

        try {
            if (localLOGV) Slog.v(TAG, "Creating service " + data.info.name);
            //创建ContextImpl
            ContextImpl context = ContextImpl.createAppContext(this, packageInfo);
            context.setOuterContext(service);

            //创建Application
            Application app = packageInfo.makeApplication(false, mInstrumentation);
            service.attach(context, this, data.info.name, data.token, app,
                    ActivityManager.getService());
            //调用服务onCreate方法
            service.onCreate();
            mServices.put(data.token, service);
            //调用服务创建完成
            try {
                ActivityManager.getService().serviceDoneExecuting(
                        data.token, SERVICE_DONE_EXECUTING_ANON, 0, 0);
            } catch (RemoteException e) {
                throw e.rethrowFromSystemServer();
            }
        } catch (Exception e) {
            if (!mInstrumentation.onException(service, e)) {
                throw new RuntimeException(
                    "Unable to create service " + data.info.name
                    + ": " + e.toString(), e);
            }
        }
    }

11.1 Service.onCreate

[->Service.java]

 public abstract class Service extends ContextWrapper implements ComponentCallbacks2 {
    /**
     * Called by the system when the service is first created.  Do not call this method directly.
     */
    public void onCreate() {
    }
  }

最终调用到了Service.onCreate方法,对于目标服务一般都是继承Service,并且覆写onCreate方法,到此终于进入到了Service的生命周期。

12.AMS.serviceDoneExecuting

[->ActivityManagerService.java]

 public void serviceDoneExecuting(IBinder token, int type, int startId, int res) {
        synchronized(this) {
            if (!(token instanceof ServiceRecord)) {
                Slog.e(TAG, "serviceDoneExecuting: Invalid service token=" + token);
                throw new IllegalArgumentException("Invalid service token");
            }
            mServices.serviceDoneExecutingLocked((ServiceRecord)token, type, startId, res);
        }
    }

由流程9.1 bumpServiceExecutingLocked方法发送了一个延时消息SERVICE_TIMEOUT_MSG,现在onCreate执行完成,那么就需要移除该消息,否则会报超时。

12.1 AS.serviceDoneExecutingLocked

[->ActiveServices.java]

 void serviceDoneExecutingLocked(ServiceRecord r, int type, int startId, int res) {
        boolean inDestroying = mDestroyingServices.contains(r);
        if (r != null) {
            if (type == ActivityThread.SERVICE_DONE_EXECUTING_START) {
                // This is a call from a service start...  take care of
                // book-keeping.
                r.callStart = true;
                //onStartCommand返回值的处理
                switch (res) {
                    case Service.START_STICKY_COMPATIBILITY:
                    case Service.START_STICKY: {
                        // We are done with the associated start arguments.
                        r.findDeliveredStart(startId, false, true);
                        // Don't stop if killed.
                        r.stopIfKilled = false;
                        break;
                    }
                    case Service.START_NOT_STICKY: {
                        // We are done with the associated start arguments.
                        r.findDeliveredStart(startId, false, true);
                        if (r.getLastStartId() == startId) {
                            // There is no more work, and this service
                            // doesn't want to hang around if killed.
                            r.stopIfKilled = true;
                        }
                        break;
                    }
                    case Service.START_REDELIVER_INTENT: {
                        // We'll keep this item until they explicitly
                        // call stop for it, but keep track of the fact
                        // that it was delivered.
                        ServiceRecord.StartItem si = r.findDeliveredStart(startId, false, false);
                        if (si != null) {
                            si.deliveryCount = 0;
                            si.doneExecutingCount++;
                            // Don't stop if killed.
                            r.stopIfKilled = true;
                        }
                        break;
                    }
                    case Service.START_TASK_REMOVED_COMPLETE: {
                        // Special processing for onTaskRemoved().  Don't
                        // impact normal onStartCommand() processing.
                        r.findDeliveredStart(startId, true, true);
                        break;
                    }
                    default:
                        throw new IllegalArgumentException(
                                "Unknown service start result: " + res);
                }
                if (res == Service.START_STICKY_COMPATIBILITY) {
                    r.callStart = false;
                }
            } else if (type == ActivityThread.SERVICE_DONE_EXECUTING_STOP) {
                // This is the final call from destroying the service...  we should
                // actually be getting rid of the service at this point.  Do some
                // validation of its state, and ensure it will be fully removed.
                if (!inDestroying) {
                    // Not sure what else to do with this...  if it is not actually in the
                    // destroying list, we don't need to make sure to remove it from it.
                    // If the app is null, then it was probably removed because the process died,
                    // otherwise wtf
                    if (r.app != null) {
                        Slog.w(TAG, "Service done with onDestroy, but not inDestroying: "
                                + r + ", app=" + r.app);
                    }
                } else if (r.executeNesting != 1) {
                    Slog.w(TAG, "Service done with onDestroy, but executeNesting="
                            + r.executeNesting + ": " + r);
                    // Fake it to keep from ANR due to orphaned entry.
                    r.executeNesting = 1;
                }
            }
            final long origId = Binder.clearCallingIdentity();
            //如下
            serviceDoneExecutingLocked(r, inDestroying, inDestroying);
            Binder.restoreCallingIdentity(origId);
        } else {
            Slog.w(TAG, "Done executing unknown service from pid "
                    + Binder.getCallingPid());
        }
    }

12.2 AS.serviceDoneExecutingLocked

[->ActiveServices.java]

 private void serviceDoneExecutingLocked(ServiceRecord r, boolean inDestroying,
            boolean finishing) {
        if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "<<< DONE EXECUTING " + r
                + ": nesting=" + r.executeNesting
                + ", inDestroying=" + inDestroying + ", app=" + r.app);
        else if (DEBUG_SERVICE_EXECUTING) Slog.v(TAG_SERVICE_EXECUTING,
                "<<< DONE EXECUTING " + r.shortName);
        r.executeNesting--;
        if (r.executeNesting <= 0) {
            if (r.app != null) {
                if (DEBUG_SERVICE) Slog.v(TAG_SERVICE,
                        "Nesting at 0 of " + r.shortName);
                r.app.execServicesFg = false;
                r.app.executingServices.remove(r);
                if (r.app.executingServices.size() == 0) {
                    //移除SERVICE_TIMEOUT_MSG消息
                    if (DEBUG_SERVICE || DEBUG_SERVICE_EXECUTING) Slog.v(TAG_SERVICE_EXECUTING,
                            "No more executingServices of " + r.shortName);
                    mAm.mHandler.removeMessages(ActivityManagerService.SERVICE_TIMEOUT_MSG, r.app);
                } else if (r.executeFg) {
                    // Need to re-evaluate whether the app still needs to be in the foreground.
                    for (int i=r.app.executingServices.size()-1; i>=0; i--) {
                        if (r.app.executingServices.valueAt(i).executeFg) {
                            r.app.execServicesFg = true;
                            break;
                        }
                    }
                }
                if (inDestroying) {
                    if (DEBUG_SERVICE) Slog.v(TAG_SERVICE,
                            "doneExecuting remove destroying " + r);
                    mDestroyingServices.remove(r);
                    r.bindings.clear();
                }
                //更新adj
                mAm.updateOomAdjLocked(r.app, true);
            }
            r.executeFg = false;
            if (r.tracker != null) {
                r.tracker.setExecuting(false, mAm.mProcessStats.getMemFactorLocked(),
                        SystemClock.uptimeMillis());
                if (finishing) {
                    r.tracker.clearCurrentOwner(r, false);
                    r.tracker = null;
                }
            }
            if (finishing) {
                if (r.app != null && !r.app.persistent) {
                    r.app.services.remove(r);
                    if (r.whitelistManager) {
                        updateWhitelistManagerLocked(r.app);
                    }
                }
                r.app = null;
            }
        }
    }

该方法将会移除SERVICE_TIMEOUT_MSG消息。Service启动过程出现ANR,会发送超时serviceRecord消息,这通常是onCreate的回调方法过长导致。

realStartServiceLocked方法,在完成onCreate操作时,后面进入到了onStartCoomnad方法.

13.AS.sendServiceArgsLocked

[->ActiveServices.java]

 private final void sendServiceArgsLocked(ServiceRecord r, boolean execInFg,
            boolean oomAdjusted) throws TransactionTooLargeException {
        final int N = r.pendingStarts.size();
        if (N == 0) {
            return;
        }
        ArrayList<ServiceStartArgs> args = new ArrayList<>();
        while (r.pendingStarts.size() > 0) {
            ServiceRecord.StartItem si = r.pendingStarts.remove(0);
            if (DEBUG_SERVICE) {
                Slog.v(TAG_SERVICE, "Sending arguments to: "
                        + r + " " + r.intent + " args=" + si.intent);
            }
            if (si.intent == null && N > 1) {
                // If somehow we got a dummy null intent in the middle,
                // then skip it.  DO NOT skip a null intent when it is
                // the only one in the list -- this is to support the
                // onStartCommand(null) case.
                continue;
            }
            si.deliveredTime = SystemClock.uptimeMillis();
            r.deliveredStarts.add(si);
            si.deliveryCount++;
            if (si.neededGrants != null) {
                mAm.grantUriPermissionUncheckedFromIntentLocked(si.neededGrants,
                        si.getUriPermissionsLocked());
            }
            mAm.grantEphemeralAccessLocked(r.userId, si.intent,
                    r.appInfo.uid, UserHandle.getAppId(si.callingId));
            //标记启动开始,同上
            bumpServiceExecutingLocked(r, execInFg, "start");
            if (!oomAdjusted) {
                oomAdjusted = true;
                mAm.updateOomAdjLocked(r.app, true);
            }
            if (r.fgRequired && !r.fgWaiting) {
                if (!r.isForeground) {
                    if (DEBUG_BACKGROUND_CHECK) {
                        Slog.i(TAG, "Launched service must call startForeground() within timeout: " + r);
                    }
                    scheduleServiceForegroundTransitionTimeoutLocked(r);
                } else {
                    if (DEBUG_BACKGROUND_CHECK) {
                        Slog.i(TAG, "Service already foreground; no new timeout: " + r);
                    }
                    r.fgRequired = false;
                }
            }
            int flags = 0;
            if (si.deliveryCount > 1) {
                flags |= Service.START_FLAG_RETRY;
            }
            if (si.doneExecutingCount > 0) {
                flags |= Service.START_FLAG_REDELIVERY;
            }
            args.add(new ServiceStartArgs(si.taskRemoved, si.id, flags, si.intent));
        }

        ParceledListSlice<ServiceStartArgs> slice = new ParceledListSlice<>(args);
        slice.setInlineCountLimit(4);
        Exception caughtException = null;
        try {
            //流程同onCreate,最后回调onStartCommand
            r.app.thread.scheduleServiceArgs(r, slice);
        } catch (TransactionTooLargeException e) {
            if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Transaction too large for " + args.size()
                    + " args, first: " + args.get(0).args);
            Slog.w(TAG, "Failed delivering service starts", e);
            caughtException = e;
        } catch (RemoteException e) {
            // Remote process gone...  we'll let the normal cleanup take care of this.
            if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Crashed while sending args: " + r);
            Slog.w(TAG, "Failed delivering service starts", e);
            caughtException = e;
        } catch (Exception e) {
            Slog.w(TAG, "Unexpected exception", e);
            caughtException = e;
        }

        if (caughtException != null) {
            // Keep nesting count correct
            final boolean inDestroying = mDestroyingServices.contains(r);
            for (int i = 0; i < args.size(); i++) {
                serviceDoneExecutingLocked(r, inDestroying, inDestroying);
            }
            if (caughtException instanceof TransactionTooLargeException) {
                throw (TransactionTooLargeException)caughtException;
            }
        }
    }

realStartServiceLocked先后执行的方法如下:

执行scheduleCreateService方法,通过层层回调到Service.onCreate;

执行scheduleServiceArgs方法,通过层层回调到Service.onStartCommand,流程同onCreate.

五、总结

整个startService过程,从进程角度来看服务启动的过程

process A进程:是指调用startService方法所在的进程,也就是启动服务的发起端进程,如:桌面上点击图标,此处Process A就是Launcher所在的进程。

system_server进程:里面运行着大量的系统服务,如AMS,是运行在system_server不同的线程中,基于Binder接口,binder线程的创建与销毁都是由Binder驱动来决定的,每个进程的binder线程个数上线为16

Zygote进程:是由init进程孵化而来,用于创建java层进程的母体,所有的java层进程都是由Zygote进程孵化而来。

Remote Service进程:远程服务所在的进程,是由zygote进程孵化而来,用于运行Remote服务进程。主线程主要是负责Activity/Service等组件的生命周期以及UI相关的操作;另外,每个app进程至少会有两个binder线程,ApplicationThread和ActivityManagerService的代理。

上面涉及到IPC通信的三种方式,Binder、Socket、Handler。一般来说,同一进程内的线程间通信采用Handler消息队列机制,不同进程间的通信采用Binder机制,另外与Zygote通信采用Socket。

启动流程:

1.Process A进程采用Binder IPC向system_server进程发起startService请求

2.system_server进程接收到请求后,向zygote进程发送创建进程的请求

3.zygote进程fork出新的子进程Remote Service进程

4.RemoteService进程通过Binder IPC向system_server进程发起attachApplication请求

5.system_server进程收到请求后,进行一序列准备工作后,再通过Binder IPC向remote sevice进程发送scheduleCreateService请求

6.Remote Service进程的binder线程收到请求后,通过handler向主线程发送CREATE_SERVICE消息

7.主线程收到消息后,通过反射机制创建目标Service,并回调Service.onCreate方法。

到此,服务就正式启动了。当创建的是本地服务或者服务所属进程已经创建,则无需经过步骤2,3直接创建服务即可。

附录

源码路径

frameworks/base/core/java/android/app/IActivityManager.aidl
frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java
frameworks/base/core/java/android/app/ActivityThread.java
frameworks/base/services/core/java/com/android/server/am/ActiveServices.java
frameworks/base/core/java/android/app/IApplicationThread.aidl
