Android10系统启动之SystemServer进程详解

这篇文章我们来详细学习下Android10系统启动中SystemServer进程的启动过程

发布日期 2020-03-22

1.概述

上一节讲解了Zygote进程的整个启动流程。Zygote是所有应用的鼻祖。SystemServer和其他所有Dalivik虚拟机进程都是由Zygote fork而来。Zygote fork的第一个进程就是SystemServer,其在手机中的进程名为 system_server。

system_server 进程承载着整个framework的核心服务,例如创建 ActivityManagerService、PowerManagerService、DisplayManagerService、PackageManagerService、WindowManagerService、LauncherAppsService等80多个核心系统服务。这些服务以不同的线程方式存在于system_server这个进程中。

接下来,就让我们透过Android系统源码一起来分析一下SystemServer的整个启动过程。

2.核心源码

/frameworks/base/core/java/com/android/internal/os/ZygoteInit.java
/frameworks/base/core/java/com/android/internal/os/RuntimeInit.java
/frameworks/base/core/java/com/android/internal/os/Zygote.java

/frameworks/base/services/java/com/android/server/SystemServer.java
/frameworks/base/services/core/java/com/android/serverSystemServiceManager.java
/frameworks/base/services/core/java/com/android/ServiceThread.java
/frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java

/frameworks/base/core/java/android/app/ActivityThread.java
/frameworks/base/core/java/android/app/LoadedApk.java
/frameworks/base/core/java/android/app/ContextImpl.java

/frameworks/base/core/jni/AndroidRuntime.cpp
/frameworks/base/core/jni/com_android_internal_os_ZygoteInit.cpp
/frameworks/base/cmds/app_process/app_main.cpp

3.架构

3.1 架构图

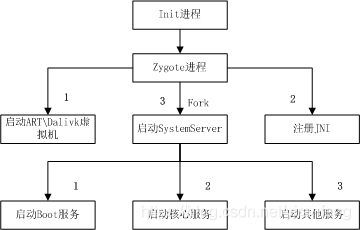

SystemServer 被Zygote进程fork出来后,用来创建ActivityManagerService、PowerManagerService、DisplayManagerService、PackageManagerService、WindowManagerService、LauncherAppsService等90多个核心系统服务

3.2 服务启动

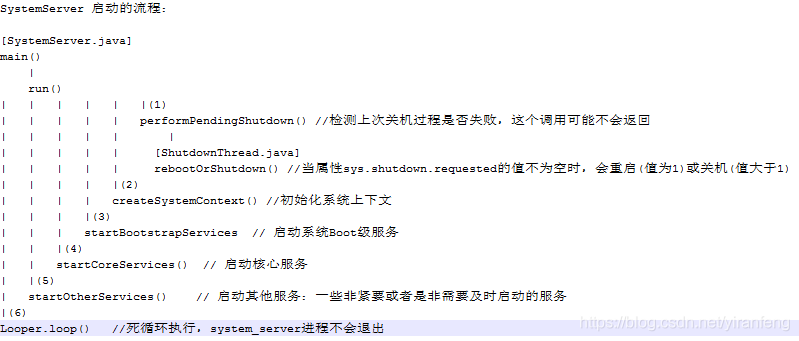

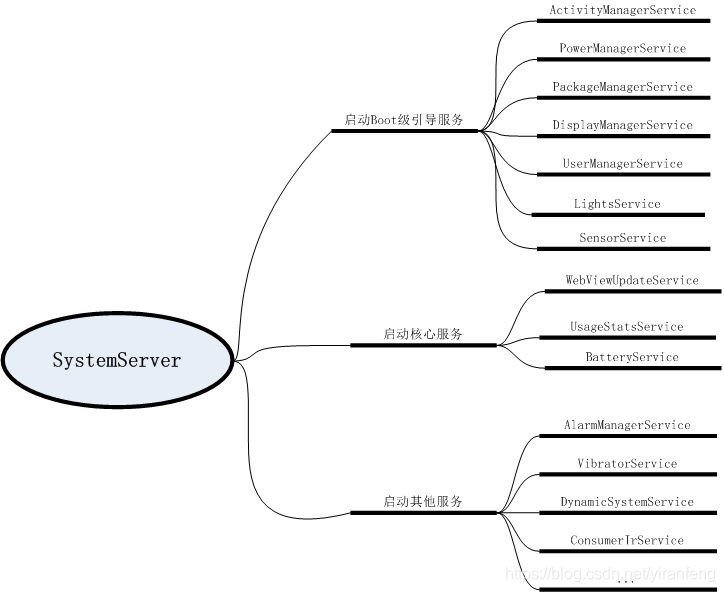

SystemServer思维导图

4. 源码分析

4.1 SystemServer fork流程分析

4.1.1 [ZygoteInit.java] main()

说明:Zygote进程,通过fork()函数,最终孵化出system_server的进程,通过反射的方法启动

SystemServer.java的main()方法

源码:

public static void main(String argv[]) {
	ZygoteServer zygoteServer = null;
    ...
	try {
		zygoteServer = new ZygoteServer(isPrimaryZygote);
		if (startSystemServer) {
			//fork system_server
			Runnable r = forkSystemServer(abiList, zygoteSocketName, zygoteServer);

			// {@code r == null} in the parent (zygote) process, and {@code r != null} in the
			// child (system_server) process.
			if (r != null) {
				r.run(); //启动SystemServer.java的main()
				return; //Android 8.0之前是通过抛异常的方式来启动,这里是直接return出去,用来清空栈,提高栈帧利用率
			}
		}
        caller = zygoteServer.runSelectLoop(abiList);
    } catch (Throwable ex) {
        Log.e(TAG, "System zygote died with exception", ex);
        throw ex;
    } finally {
        if (zygoteServer != null) {
            zygoteServer.closeServerSocket();
        }
    }
	if (caller != null) {
        caller.run();
    }
	...
}

4.1.2[ZygoteInit.java] forkSystemServer()

说明:准备参数,用来进行system_server的fork,从参数可知,pid=1000,gid=1000,进程名nick-name=system_server

当有两个Zygote进程时,需要等待第二个Zygote创建完成。由于fork时会拷贝socket,因此,在fork出system_server进程后,

需要关闭Zygote原有的socket

源码:

private static Runnable forkSystemServer(String abiList, String socketName,
        ZygoteServer zygoteServer) {
    ......
    //参数准备,uid和gid都是为1000
    String args[] = {
            "--setuid=1000",
            "--setgid=1000",
            "--setgroups=1001,1002,1003,1004,1005,1006,1007,1008,1009,1010,1018,1021,1023,"
                    + "1024,1032,1065,3001,3002,3003,3006,3007,3009,3010",
            "--capabilities=" + capabilities + "," + capabilities,
            "--nice-name=system_server",
            "--runtime-args",
            "--target-sdk-version=" + VMRuntime.SDK_VERSION_CUR_DEVELOPMENT,
            "com.android.server.SystemServer",
    };
    ZygoteArguments parsedArgs = null;
    int pid;
    try {
        //将上面准备的参数,按照ZygoteArguments的风格进行封装
        parsedArgs = new ZygoteArguments(args);
        Zygote.applyDebuggerSystemProperty(parsedArgs);
        Zygote.applyInvokeWithSystemProperty(parsedArgs);

        //通过fork"分裂"出子进程system_server
        /* Request to fork the system server process */
        pid = Zygote.forkSystemServer(
                parsedArgs.mUid, parsedArgs.mGid,
                parsedArgs.mGids,
                parsedArgs.mRuntimeFlags,
                null,
                parsedArgs.mPermittedCapabilities,
                parsedArgs.mEffectiveCapabilities);
    } catch (IllegalArgumentException ex) {
        throw new RuntimeException(ex);
    }

    //进入子进程system_server
    if (pid == 0) {
        // 处理32_64和64_32的情况
        if (hasSecondZygote(abiList)) {
            waitForSecondaryZygote(socketName);  //需要等待第二个Zygote创建完成
        }

        // fork时会copy socket,Zygote原有的socket需要关闭
        zygoteServer.closeServerSocket();
        // system server进程处理自己的工作
        return handleSystemServerProcess(parsedArgs);
    }
    return null;
}

4.1.3 [Zygote.java] forkSystemServer()

说明:这里的nativeForkSystemServer()最终是通过JNI,调用Nativate C空间的com_android_internal_os_Zygote_nativeForkSystemServer()

来fork system_server

源码:

public static int forkSystemServer(int uid, int gid, int[] gids, int runtimeFlags,
        int[][] rlimits, long permittedCapabilities, long effectiveCapabilities) {
    ZygoteHooks.preFork();
    // Resets nice priority for zygote process.
    resetNicePriority();
    //调用native的方法来fork system_server
    //最终调用native的方法:com_android_internal_os_Zygote_nativeForkSystemServer
    int pid = nativeForkSystemServer(
            uid, gid, gids, runtimeFlags, rlimits,
            permittedCapabilities, effectiveCapabilities);
    // Enable tracing as soon as we enter the system_server.
    if (pid == 0) {
        Trace.setTracingEnabled(true, runtimeFlags);
    }
    ZygoteHooks.postForkCommon();
    return pid;
}

[com_android_internal_os_Zygote.cpp]

说明:JNI注册的映射关系

static const JNINativeMethod gMethods[] = {
    { "nativeForkSystemServer", "(II[II[[IJJ)I",
      (void *) com_android_internal_os_Zygote_nativeForkSystemServer },
}

4.1.4[com_android_internal_os_Zygote.cpp]

com_android_internal_os_Zygote_nativeForkSystemServer()

说明:通过 SpecializeCommon进行fork,pid返回0时,表示当前为system_server子进程

当pid >0 时,是进入父进程,即Zygote进程,通过waitpid 的WNOHANG 非阻塞方式来监控

system_server进程挂掉,如果挂掉后重启Zygote进程。

现在使用的Android系统大部分情况下是64位的,会存在两个Zygote,当system_server挂掉后,

只启动Zygote64这个父进程

源码:

static jint com_android_internal_os_Zygote_nativeForkSystemServer(
        JNIEnv* env, jclass, uid_t uid, gid_t gid, jintArray gids,
        jint runtime_flags, jobjectArray rlimits, jlong permitted_capabilities,
        jlong effective_capabilities) {


  pid_t pid = ForkCommon(env, true,
                         fds_to_close,
                         fds_to_ignore);
  if (pid == 0) {
      //进入子进程
      SpecializeCommon(env, uid, gid, gids, runtime_flags, rlimits,
                       permitted_capabilities, effective_capabilities,
                       MOUNT_EXTERNAL_DEFAULT, nullptr, nullptr, true,
                       false, nullptr, nullptr);
  } else if (pid > 0) {
      //进入父进程,即zygote进程
      ALOGI("System server process %d has been created", pid);

      int status;
	  //用waitpid函数获取状态发生变化的子进程pid
	  //waitpid的标记为WNOHANG,即非阻塞,返回为正值就说明有进程挂掉了
      if (waitpid(pid, &status, WNOHANG) == pid) {
		  //当system_server进程死亡后,重启zygote进程
          ALOGE("System server process %d has died. Restarting Zygote!", pid);
          RuntimeAbort(env, __LINE__, "System server process has died. Restarting Zygote!");
      }
	  ...
  }
  return pid;
}

4.1.5 [com_android_internal_os_Zygote.cpp] ForkCommon

说明:从Zygote孵化出一个进程的使用程序

源码:

static pid_t ForkCommon(JNIEnv* env, bool is_system_server,
                        const std::vector<int>& fds_to_close,
                        const std::vector<int>& fds_to_ignore) {
  //设置子进程的signal
  SetSignalHandlers();

  //在fork的过程中,临时锁住SIGCHLD
  BlockSignal(SIGCHLD, fail_fn);

  //fork子进程,采用copy on write方式,这里执行一次,会返回两次
  //pid=0 表示Zygote  fork SystemServer这个子进程成功
  //pid > 0 表示SystemServer 的真正的PID
  pid_t pid = fork();

  if (pid == 0) {
     //进入子进程
    // The child process.
    PreApplicationInit();

    // 关闭并清除文件描述符
    // Clean up any descriptors which must be closed immediately
    DetachDescriptors(env, fds_to_close, fail_fn);
	...
  } else {
    ALOGD("Forked child process %d", pid);
  }

  //fork结束,解锁
  UnblockSignal(SIGCHLD, fail_fn);

  return pid;
}

4.1.6 [Zygcom_android_internal_os_Zygoteote.cpp] SpecializeCommon

说明:system_server进程的一些调度配置

源码:

static void SpecializeCommon(JNIEnv* env, uid_t uid, gid_t gid, jintArray gids,
                             jint runtime_flags, jobjectArray rlimits,
                             jlong permitted_capabilities, jlong effective_capabilities,
                             jint mount_external, jstring managed_se_info,
                             jstring managed_nice_name, bool is_system_server,
                             bool is_child_zygote, jstring managed_instruction_set,
                             jstring managed_app_data_dir) {
  ...
  bool use_native_bridge = !is_system_server &&
                           instruction_set.has_value() &&
                           android::NativeBridgeAvailable() &&
                           android::NeedsNativeBridge(instruction_set.value().c_str());

  if (!is_system_server && getuid() == 0) {
    //对于非system_server子进程,则创建进程组
    const int rc = createProcessGroup(uid, getpid());
    if (rc == -EROFS) {
      ALOGW("createProcessGroup failed, kernel missing CONFIG_CGROUP_CPUACCT?");
    } else if (rc != 0) {
      ALOGE("createProcessGroup(%d, %d) failed: %s", uid, /* pid= */ 0, strerror(-rc));
    }
  }

  SetGids(env, gids, fail_fn);  //设置设置group
  SetRLimits(env, rlimits, fail_fn); //设置资源limit

  if (use_native_bridge) {
    // Due to the logic behind use_native_bridge we know that both app_data_dir
    // and instruction_set contain values.
    android::PreInitializeNativeBridge(app_data_dir.value().c_str(),
                                       instruction_set.value().c_str());
  }

  if (setresgid(gid, gid, gid) == -1) {
    fail_fn(CREATE_ERROR("setresgid(%d) failed: %s", gid, strerror(errno)));
  }
   ...
   //selinux上下文
  if (selinux_android_setcontext(uid, is_system_server, se_info_ptr, nice_name_ptr) == -1) {
    fail_fn(CREATE_ERROR("selinux_android_setcontext(%d, %d, \"%s\", \"%s\") failed",
                         uid, is_system_server, se_info_ptr, nice_name_ptr));
  }

  //设置线程名为system_server,方便调试
  if (nice_name.has_value()) {
    SetThreadName(nice_name.value());
  } else if (is_system_server) {
    SetThreadName("system_server");
  }

  // Unset the SIGCHLD handler, but keep ignoring SIGHUP (rationale in SetSignalHandlers).
  //设置子进程的signal信号处理函数为默认函数
  UnsetChldSignalHandler();

  if (is_system_server) {

    //对应  Zygote.java 的callPostForkSystemServerHooks()
    env->CallStaticVoidMethod(gZygoteClass, gCallPostForkSystemServerHooks);
    if (env->ExceptionCheck()) {
      fail_fn("Error calling post fork system server hooks.");
    }

	//对应ZygoteInit.java 的 createSystemServerClassLoader()
	//预取系统服务器的类加载器。这样做是为了尽早地绑定适当的系统服务器selinux域。
    env->CallStaticVoidMethod(gZygoteInitClass, gCreateSystemServerClassLoader);
    if (env->ExceptionCheck()) {
      // Be robust here. The Java code will attempt to create the classloader
      // at a later point (but may not have rights to use AoT artifacts).
      env->ExceptionClear();
    }
	...
  }

   //等价于调用zygote.java 的callPostForkChildHooks()
  env->CallStaticVoidMethod(gZygoteClass, gCallPostForkChildHooks, runtime_flags,
                            is_system_server, is_child_zygote, managed_instruction_set);

  if (env->ExceptionCheck()) {
    fail_fn("Error calling post fork hooks.");
  }
}

4.1.7 [ZygoteInit.java] handleSystemServerProcess

说明:创建类加载器,并赋予当前线程,其中环境变量SYSTEMSERVERCLASSPATH,主要是service.jar、ethernet-service.jar和wifi-service.jar这三个jar包

export SYSTEMSERVERCLASSPATH=/system/framework/services.jar:/system/framework/ethernet-service.jar:/system/framework/wifi-service.jar

源码:

private static Runnable handleSystemServerProcess(ZygoteArguments parsedArgs) {

    if (parsedArgs.mNiceName != null) {
        Process.setArgV0(parsedArgs.mNiceName); //设置当前进程名为"system_server"
    }

    final String systemServerClasspath = Os.getenv("SYSTEMSERVERCLASSPATH");
    if (systemServerClasspath != null) {
       //执行dex优化操作
        if (performSystemServerDexOpt(systemServerClasspath)) {
            sCachedSystemServerClassLoader = null;
        }
		...
    }

    if (parsedArgs.mInvokeWith != null) {
        String[] args = parsedArgs.mRemainingArgs;
		//如果我们有一个非空系统服务器类路径,我们将不得不复制现有的参数并将类路径附加到它。
		//当我们执行一个新进程时,ART将正确地处理类路径。
        if (systemServerClasspath != null) {
            String[] amendedArgs = new String[args.length + 2];
            amendedArgs[0] = "-cp";
            amendedArgs[1] = systemServerClasspath;
            System.arraycopy(args, 0, amendedArgs, 2, args.length);
            args = amendedArgs;
        }

        //启动应用进程
        WrapperInit.execApplication(parsedArgs.mInvokeWith,
                parsedArgs.mNiceName, parsedArgs.mTargetSdkVersion,
                VMRuntime.getCurrentInstructionSet(), null, args);

        throw new IllegalStateException("Unexpected return from WrapperInit.execApplication");
    } else {
        // 创建类加载器,并赋予当前线程
        createSystemServerClassLoader();
        ClassLoader cl = sCachedSystemServerClassLoader;
        if (cl != null) {
            Thread.currentThread().setContextClassLoader(cl);
        }

        //system_server进入此分支
        return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
                parsedArgs.mRemainingArgs, cl);
    }
}

4.1.8[ZygoteInit.java] zygoteInit

说明:基础配置,并进行应用初始化,返回对象

源码:

public static final Runnable zygoteInit(int targetSdkVersion, String[] argv,
        ClassLoader classLoader) {

    Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ZygoteInit");
    RuntimeInit.redirectLogStreams();  //重定向log输出

    RuntimeInit.commonInit(); //通用的一些初始化
    ZygoteInit.nativeZygoteInit(); // zygote初始化
    // 应用初始化
    return RuntimeInit.applicationInit(targetSdkVersion, argv, classLoader);
}

4.1.9[RuntimeInit.java] commonInit

说明:配置log、时区、http userAgent等基础信息

源码:

protected static final void commonInit() {
	LoggingHandler loggingHandler = new LoggingHandler();

    // 设置默认的未捕捉异常处理方法
    RuntimeHooks.setUncaughtExceptionPreHandler(loggingHandler);
    Thread.setDefaultUncaughtExceptionHandler(new KillApplicationHandler(loggingHandler));

    // 设置时区,通过属性读出中国时区为"Asia/Shanghai"
    RuntimeHooks.setTimeZoneIdSupplier(() -> SystemProperties.get("persist.sys.timezone"));

    //重置log配置
    LogManager.getLogManager().reset();
    new AndroidConfig();

    //设置默认的HTTP User-agent格式,用于 HttpURLConnection
    String userAgent = getDefaultUserAgent();
    System.setProperty("http.agent", userAgent);

    /*
     * Wire socket tagging to traffic stats.
     */
    //设置socket的tag,用于网络流量统计
    NetworkManagementSocketTagger.install();
	...
}

4.1.10[ZygoteInit.java] nativeZygoteInit

说明:nativeZygoteInit 通过反射,进入com_android_internal_os_ZygoteInit_nativeZygoteInit

源码:

[AndroidRuntime.cpp]

int register_com_android_internal_os_ZygoteInit_nativeZygoteInit(JNIEnv* env)
{
    const JNINativeMethod methods[] = {
        { "nativeZygoteInit", "()V",
            (void*) com_android_internal_os_ZygoteInit_nativeZygoteInit },
    };
    return jniRegisterNativeMethods(env, "com/android/internal/os/ZygoteInit",
        methods, NELEM(methods));
}

gCurRuntime = this;
static void com_android_internal_os_ZygoteInit_nativeZygoteInit(JNIEnv* env, jobject clazz)
{
    //此处的gCurRuntime为AppRuntime,是在AndroidRuntime.cpp中定义的
    gCurRuntime->onZygoteInit();
}

[app_main.cpp]
virtual void onZygoteInit()
{
    sp<ProcessState> proc = ProcessState::self();
    ALOGV("App process: starting thread pool.\n");
    proc->startThreadPool(); //启动新binder线程
}

4.1.11[RuntimeInit.java] applicationInit

说明:通过参数解析,得到args.startClass = com.android.server.SystemServer

源码:

protected static Runnable applicationInit(int targetSdkVersion, String[] argv,
        ClassLoader classLoader) {

    //true代表应用程序退出时不调用AppRuntime.onExit(),否则会在退出前调用
    nativeSetExitWithoutCleanup(true);

    // We want to be fairly aggressive about heap utilization, to avoid
    // holding on to a lot of memory that isn't needed.

    //设置虚拟机的内存利用率参数值为0.75
    VMRuntime.getRuntime().setTargetHeapUtilization(0.75f);
    VMRuntime.getRuntime().setTargetSdkVersion(targetSdkVersion);

    final Arguments args = new Arguments(argv);  //解析参数
	...
    // Remaining arguments are passed to the start class's static main
    //调用startClass的static方法 main()
    return findStaticMain(args.startClass, args.startArgs, classLoader);
}

4.1.12 [RuntimeInit.java] findStaticMain

说明:拿到SystemServer的main()方法,并返回 MethodAndArgsCaller()对象

源码:

protected static Runnable findStaticMain(String className, String[] argv,
        ClassLoader classLoader) {
    Class<?> cl;

    try {
		//拿到com.android.server.SystemServer 的类对象
        cl = Class.forName(className, true, classLoader);
    } catch (ClassNotFoundException ex) {
        throw new RuntimeException(
                "Missing class when invoking static main " + className,
                ex);
    }

    Method m;
    try {
        //得到SystemServer的main()方法,
        m = cl.getMethod("main", new Class[] { String[].class });
    } catch (NoSuchMethodException ex) {
        throw new RuntimeException(
                "Missing static main on " + className, ex);
    } catch (SecurityException ex) {
        throw new RuntimeException(
                "Problem getting static main on " + className, ex);
    }

    int modifiers = m.getModifiers();
    if (! (Modifier.isStatic(modifiers) && Modifier.isPublic(modifiers))) {
        throw new RuntimeException(
                "Main method is not public and static on " + className);
    }

    //把MethodAndArgsCaller的对象返回给ZygoteInit.main()。这样做好处是能清空栈帧,提高栈帧利用率
	//清除了设置进程所需的所有堆栈帧
    return new MethodAndArgsCaller(m, argv);
}

4.1.13[RuntimeInit.java] MethodAndArgsCaller

说明:最终在ZygoteInit.java的main(),调用这里的run()来启动SystemServer.java的main(),真正进入SystemServer进程

源码:

static class MethodAndArgsCaller implements Runnable {
    /** method to call */
    private final Method mMethod;

    /** argument array */
    private final String[] mArgs;

    public MethodAndArgsCaller(Method method, String[] args) {
        mMethod = method;
        mArgs = args;
    }

    public void run() {
        try {
          //根据传递过来的参数,可知此处通过反射机制调用的是SystemServer.main()方法
            mMethod.invoke(null, new Object[] { mArgs });
        } catch (IllegalAccessException ex) {
            throw new RuntimeException(ex);
        } catch (InvocationTargetException ex) {
            Throwable cause = ex.getCause();
            if (cause instanceof RuntimeException) {
                throw (RuntimeException) cause;
            } else if (cause instanceof Error) {
                throw (Error) cause;
            }
            throw new RuntimeException(ex);
        }
    }
}

4.2 SystemServer 启动后的流程

4.2.1[SystemServer.java] main

说明:main函数由Zygote进程 fork后运行,作用是new 一个SystemServer对象,再调用该对象的run()方法

源码:

public static void main(String[] args) {
    //new 一个SystemServer对象,再调用该对象的run()方法
    new SystemServer().run();
}

4.2.2 [SystemServer.java] run

说明:先初始化一些系统变量,加载类库,创建Context对象,创建SystemServiceManager对象等候再启动服务,启动引导服务、核心服务和其他服务

源码:

private void run() {
    try {
        traceBeginAndSlog("InitBeforeStartServices");

        // Record the process start information in sys props.
        //从属性中读取system_server进程的一些信息
        SystemProperties.set(SYSPROP_START_COUNT, String.valueOf(mStartCount));
        SystemProperties.set(SYSPROP_START_ELAPSED, String.valueOf(mRuntimeStartElapsedTime));
        SystemProperties.set(SYSPROP_START_UPTIME, String.valueOf(mRuntimeStartUptime));

        EventLog.writeEvent(EventLogTags.SYSTEM_SERVER_START,
                mStartCount, mRuntimeStartUptime, mRuntimeStartElapsedTime);


        //如果一个设备的时钟是在1970年之前(0年之前),
        //那么很多api 都会因为处理负数而崩溃,尤其是java.io.File#setLastModified
        //我把把时间设置为1970
        if (System.currentTimeMillis() < EARLIEST_SUPPORTED_TIME) {
            Slog.w(TAG, "System clock is before 1970; setting to 1970.");
            SystemClock.setCurrentTimeMillis(EARLIEST_SUPPORTED_TIME);
        }

        //如果时区不存在,设置时区为GMT
        String timezoneProperty = SystemProperties.get("persist.sys.timezone");
        if (timezoneProperty == null || timezoneProperty.isEmpty()) {
            Slog.w(TAG, "Timezone not set; setting to GMT.");
            SystemProperties.set("persist.sys.timezone", "GMT");
        }

        //变更虚拟机的库文件,对于Android 10.0默认采用的是libart.so
        SystemProperties.set("persist.sys.dalvik.vm.lib.2", VMRuntime.getRuntime().vmLibrary());

        // Mmmmmm... more memory!
        //清除vm内存增长上限,由于启动过程需要较多的虚拟机内存空间
        VMRuntime.getRuntime().clearGrowthLimit();
		...
        //系统服务器必须一直运行,所以它需要尽可能高效地使用内存
        //设置内存的可能有效使用率为0.8
        VMRuntime.getRuntime().setTargetHeapUtilization(0.8f);


        //一些设备依赖于运行时指纹生成,所以在进一步启动之前,请确保我们已经定义了它。
        Build.ensureFingerprintProperty();

        //访问环境变量前,需要明确地指定用户
        //在system_server中,任何传入的包都应该被解除,以避免抛出BadParcelableException。
        BaseBundle.setShouldDefuse(true);

        //在system_server中,当打包异常时,信息需要包含堆栈跟踪
        Parcel.setStackTraceParceling(true);

        //确保当前系统进程的binder调用,总是运行在前台优先级(foreground priority)
        BinderInternal.disableBackgroundScheduling(true);

        //设置system_server中binder线程的最大数量,最大值为31
        BinderInternal.setMaxThreads(sMaxBinderThreads);

        //准备主线程lopper,即在当前线程运行
        android.os.Process.setThreadPriority(
                android.os.Process.THREAD_PRIORITY_FOREGROUND);
        android.os.Process.setCanSelfBackground(false);
        Looper.prepareMainLooper();
        Looper.getMainLooper().setSlowLogThresholdMs(
                SLOW_DISPATCH_THRESHOLD_MS, SLOW_DELIVERY_THRESHOLD_MS);

        //加载android_servers.so库,初始化native service
        System.loadLibrary("android_servers");

        // Debug builds - allow heap profiling.
        //如果是Debug版本,允许堆内存分析
        if (Build.IS_DEBUGGABLE) {
            initZygoteChildHeapProfiling();
        }

        //检测上次关机过程是否失败,这个调用可能不会返回
        performPendingShutdown();

        //初始化系统上下文
        createSystemContext();

        //创建系统服务管理--SystemServiceManager
        mSystemServiceManager = new SystemServiceManager(mSystemContext);
        mSystemServiceManager.setStartInfo(mRuntimeRestart,
                mRuntimeStartElapsedTime, mRuntimeStartUptime);
        //将mSystemServiceManager添加到本地服务的成员sLocalServiceObjects
        LocalServices.addService(SystemServiceManager.class, mSystemServiceManager);
        // Prepare the thread pool for init tasks that can be parallelized
        //为可以并行化的init任务准备线程池
        SystemServerInitThreadPool.get();
    } finally {
        traceEnd();  // InitBeforeStartServices
    }

    // Start services.
    //启动服务
    try {
        traceBeginAndSlog("StartServices");
        startBootstrapServices();   // 启动引导服务
        startCoreServices();        // 启动核心服务
        startOtherServices();       // 启动其他服务
        SystemServerInitThreadPool.shutdown(); //停止线程池
    } catch (Throwable ex) {
        Slog.e("System", "******************************************");
        Slog.e("System", "************ Failure starting system services", ex);
        throw ex;
    } finally {
        traceEnd();
    }

    //为当前的虚拟机初始化VmPolicy
    StrictMode.initVmDefaults(null);
	...
    // Loop forever.
    //死循环执行
    Looper.loop();
    throw new RuntimeException("Main thread loop unexpectedly exited");
}

4.2.3[SystemServer.java] performPendingShutdown

说明:检测上次关机过程是否失败,这个调用可能不会返回

源码:

private void performPendingShutdown() {
    final String shutdownAction = SystemProperties.get(
            ShutdownThread.SHUTDOWN_ACTION_PROPERTY, "");
    if (shutdownAction != null && shutdownAction.length() > 0) {
        boolean reboot = (shutdownAction.charAt(0) == '1');

        final String reason;
        if (shutdownAction.length() > 1) {
            reason = shutdownAction.substring(1, shutdownAction.length());
        } else {
            reason = null;
        }

        //如果需要重新启动才能应用更新,一定要确保uncrypt在需要时正确执行。
        //如果'/cache/recovery/block.map'还没有创建,停止重新启动,它肯定会失败,
        //并有机会捕获一个bugreport时,这仍然是可行的。
        if (reason != null && reason.startsWith(PowerManager.REBOOT_RECOVERY_UPDATE)) {
            File packageFile = new File(UNCRYPT_PACKAGE_FILE);
            if (packageFile.exists()) {
                String filename = null;
                try {
                    filename = FileUtils.readTextFile(packageFile, 0, null);
                } catch (IOException e) {
                    Slog.e(TAG, "Error reading uncrypt package file", e);
                }

                if (filename != null && filename.startsWith("/data")) {
                    if (!new File(BLOCK_MAP_FILE).exists()) {
                        Slog.e(TAG, "Can't find block map file, uncrypt failed or " +
                                "unexpected runtime restart?");
                        return;
                    }
                }
            }
        }
        Runnable runnable = new Runnable() {
            @Override
            public void run() {
                synchronized (this) {
                    //当属性sys.shutdown.requested的值为1时,会重启
                    //当属性的值不为空,且不为1时,会关机
                    ShutdownThread.rebootOrShutdown(null, reboot, reason);
                }
            }
        };

        // ShutdownThread must run on a looper capable of displaying the UI.
        //ShutdownThread必须在一个能够显示UI的looper上运行
        //即UI线程启动ShutdownThread的rebootOrShutdown
        Message msg = Message.obtain(UiThread.getHandler(), runnable);
        msg.setAsynchronous(true);
        UiThread.getHandler().sendMessage(msg);

    }
}

4.2.4[SystemServer.java] createSystemContext

说明:初始化系统上下文, 该过程会创建对象有ActivityThread,Instrumentation, ContextImpl,LoadedApk,Application

源码:

private void createSystemContext() {
    //创建system_server进程的上下文信息
    ActivityThread activityThread = ActivityThread.systemMain();
    mSystemContext = activityThread.getSystemContext();
    //设置主题
    mSystemContext.setTheme(DEFAULT_SYSTEM_THEME);

    //获取systemui上下文信息,并设置主题
    final Context systemUiContext = activityThread.getSystemUiContext();
    systemUiContext.setTheme(DEFAULT_SYSTEM_THEME);
}

4.2.5[SystemServer.java] startBootstrapServices

说明:用于启动系统Boot级服务,有ActivityManagerService, PowerManagerService, LightsService, DisplayManagerService, PackageManagerService, UserManagerService, sensor服务.

源码:

private void startBootstrapServices() {
    traceBeginAndSlog("StartWatchdog");
    //启动watchdog
    //尽早启动watchdog,如果在早起启动时发生死锁,我们可以让system_server
    //崩溃,从而进行详细分析
    final Watchdog watchdog = Watchdog.getInstance();
    watchdog.start();
    traceEnd();

...
    //添加PLATFORM_COMPAT_SERVICE,Platform compat服务被ActivityManagerService、PackageManagerService
    //以及将来可能出现的其他服务使用。
    traceBeginAndSlog("PlatformCompat");
    ServiceManager.addService(Context.PLATFORM_COMPAT_SERVICE,
            new PlatformCompat(mSystemContext));
    traceEnd();

    //阻塞等待installd完成启动,以便有机会创建具有适当权限的关键目录,如/data/user。
    //我们需要在初始化其他服务之前完成此任务。
    traceBeginAndSlog("StartInstaller");
    Installer installer = mSystemServiceManager.startService(Installer.class);
    traceEnd();
...
    //启动服务ActivityManagerService,并为其设置mSystemServiceManager和installer
    traceBeginAndSlog("StartActivityManager");
    ActivityTaskManagerService atm = mSystemServiceManager.startService(
            ActivityTaskManagerService.Lifecycle.class).getService();
    mActivityManagerService = ActivityManagerService.Lifecycle.startService(mSystemServiceManager, atm);
    mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
    mActivityManagerService.setInstaller(installer);
    mWindowManagerGlobalLock = atm.getGlobalLock();
    traceEnd();

    //启动服务PowerManagerService
    //Power manager需要尽早启动,因为其他服务需要它。
    //本机守护进程可能正在监视它的注册,
    //因此它必须准备好立即处理传入的绑定器调用(包括能够验证这些调用的权限)
。
    traceBeginAndSlog("StartPowerManager");
    mPowerManagerService = mSystemServiceManager.startService(
PowerManagerService.class);
    traceEnd();

...
    //初始化power management
    traceBeginAndSlog("InitPowerManagement");
    mActivityManagerService.initPowerManagement();
    traceEnd();

    //启动recovery system,以防需要重新启动
    traceBeginAndSlog("StartRecoverySystemService");
    mSystemServiceManager.startService(RecoverySystemService.class);
    traceEnd();
...
    //启动服务LightsService
    //管理led和显示背光,所以我们需要它来打开显示
    traceBeginAndSlog("StartLightsService");
    mSystemServiceManager.startService(LightsService.class);
    traceEnd();
...
    //启动服务DisplayManagerService
    //显示管理器需要在包管理器之前提供显示指标
    traceBeginAndSlog("StartDisplayManager");
    mDisplayManagerService = mSystemServiceManager.startService(DisplayManagerService.class);
    traceEnd();

    // Boot Phases: Phase100: 在初始化package manager之前,需要默认的显示.
    traceBeginAndSlog("WaitForDisplay");
    mSystemServiceManager.startBootPhase(SystemService.PHASE_WAIT_FOR_DEFAULT_DISPLAY);
    traceEnd();

    //当设备正在加密时,仅运行核心
    String cryptState = VoldProperties.decrypt().orElse("");
    if (ENCRYPTING_STATE.equals(cryptState)) {
        Slog.w(TAG, "Detected encryption in progress - only parsing core apps");
        mOnlyCore = true;
    } else if (ENCRYPTED_STATE.equals(cryptState)) {
        Slog.w(TAG, "Device encrypted - only parsing core apps");
        mOnlyCore = true;
    }
...
    //启动服务PackageManagerService
    traceBeginAndSlog("StartPackageManagerService");
    try {
        Watchdog.getInstance().pauseWatchingCurrentThread("packagemanagermain");
        mPackageManagerService = PackageManagerService.main(mSystemContext, installer,
                mFactoryTestMode != FactoryTest.FACTORY_TEST_OFF, mOnlyCore);
    } finally {
        Watchdog.getInstance().resumeWatchingCurrentThread("packagemanagermain");
    }
...
    //启动服务UserManagerService,新建目录/data/user/
    traceBeginAndSlog("StartUserManagerService");
    mSystemServiceManager.startService(UserManagerService.LifeCycle.class);
    traceEnd();

    // Set up the Application instance for the system process and get  started.
    //为系统进程设置应用程序实例并开始。
    //设置AMS
    traceBeginAndSlog("SetSystemProcess");
    mActivityManagerService.setSystemProcess();
    traceEnd();

    //使用一个ActivityManager实例完成watchdog设置并监听重启,
//只有在ActivityManagerService作为一个系统进程正确启动后才能这样做
    traceBeginAndSlog("InitWatchdog");
    watchdog.init(mSystemContext, mActivityManagerService);
    traceEnd();

     //传感器服务需要访问包管理器服务、app ops服务和权限服务,
    //因此我们在它们之后启动它。
    //在单独的线程中启动传感器服务。在使用它之前应该检查完成情况。
    mSensorServiceStart = SystemServerInitThreadPool.get().submit(() -> {
        TimingsTraceLog traceLog = new TimingsTraceLog(
                SYSTEM_SERVER_TIMING_ASYNC_TAG, Trace.
TRACE_TAG_SYSTEM_SERVER);
        traceLog.traceBegin(START_SENSOR_SERVICE);
        startSensorService(); //启动传感器服务
        traceLog.traceEnd();
    }, START_SENSOR_SERVICE);
}

4.2.6[SystemServer.java] startCoreServices

说明:启动核心服务BatteryService,UsageStatsService,WebViewUpdateService、BugreportManagerService、GpuService等

源码:

private void startCoreServices() {
    //启动服务BatteryService,用于统计电池电量,需要LightService.
    mSystemServiceManager.startService(BatteryService.class);

    //启动服务UsageStatsService,用于统计应用使用情况
    mSystemServiceManager.startService(UsageStatsService.class);
    mActivityManagerService.setUsageStatsManager(
            LocalServices.getService(UsageStatsManagerInternal.class));

    //启动服务WebViewUpdateService
    //跟踪可更新的WebView是否处于就绪状态,并监视更新安装
    if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_WEBVIEW)) {
        mWebViewUpdateService = mSystemServiceManager.startService(WebViewUpdateService.class);
    }

    //启动CachedDeviceStateService,跟踪和缓存设备状态
    mSystemServiceManager.startService(CachedDeviceStateService.class);

    //启动BinderCallsStatsService, 跟踪在绑定器调用中花费的cpu时间
    traceBeginAndSlog("StartBinderCallsStatsService");
    mSystemServiceManager.startService(BinderCallsStatsService.LifeCycle.class);
    traceEnd();

    //启动LooperStatsService,跟踪处理程序中处理消息所花费的时间。
    traceBeginAndSlog("StartLooperStatsService");
    mSystemServiceManager.startService(LooperStatsService.Lifecycle.class);
    traceEnd();

    //启动RollbackManagerService,管理apk回滚
    mSystemServiceManager.startService(RollbackManagerService.class);

    //启动BugreportManagerService,捕获bugreports的服务
    mSystemServiceManager.startService(BugreportManagerService.class);

    //启动GpuService,为GPU和GPU驱动程序提供服务。
    mSystemServiceManager.startService(GpuService.class);
}

4.2.7[SystemServer.java] startOtherServices

说明:启动其他的服务,开始处理一大堆尚未重构和整理的东西,这里的服务太多,大体启动过程类似,就不详细说明

源码:

private void startOtherServices() {
	...
    //启动TelecomLoaderService,通话相关核心服务
    mSystemServiceManager.startService(TelecomLoaderService.class);

    //启动TelephonyRegistry
    telephonyRegistry = new TelephonyRegistry(context);
    ServiceManager.addService("telephony.registry", telephonyRegistry);
	...
	//启动AlarmManagerService,时钟管理
	mSystemServiceManager.startService(new AlarmManagerService(context));
	...
	//启动InputManagerService
	inputManager = new InputManagerService(context);
	ServiceManager.addService(Context.INPUT_SERVICE, inputManager,
            /* allowIsolated= */ false, DUMP_FLAG_PRIORITY_CRITICAL);
	...
	inputManager.setWindowManagerCallbacks(wm.getInputManagerCallback());
    inputManager.start();
	...
	//Phase480:在接收到此启动阶段后,服务可以获得锁设置数据
    mSystemServiceManager.startBootPhase(SystemService.PHASE_LOCK_SETTINGS_READY);

    //Phase500:在接收到这个启动阶段之后,服务可以安全地调用核心系统服务,
    //如PowerManager或PackageManager。
    mSystemServiceManager.startBootPhase(SystemService.PHASE_SYSTEM_SERVICES_READY);

	mActivityManagerService.systemReady(() -> {
        //Phase550:在接收到此引导阶段后,服务可以广播意图。
        mSystemServiceManager.startBootPhase(
                SystemService.PHASE_ACTIVITY_MANAGER_READY);

		//Phase600:在接收到这个启动阶段后,服务可以启动/绑定到第三方应用程序。
        //此时,应用程序将能够对服务进行绑定调用。
        mSystemServiceManager.startBootPhase(
        SystemService.PHASE_THIRD_PARTY_APPS_CAN_START);
	}
}

5.服务启动分析

服务启动流程如下,从阶段0到阶段1000,一共8个阶段。

其中PHASE_BOOT_COMPLETED=1000,该阶段是发生在Boot完成和home应用启动完毕。系统服务更倾向于监听该阶段,而不是注册广播ACTION_BOOT_COMPLETED,从而降低系统延迟。

5.1 PHASE 0:

说明:startBootstrapServices() 启动引导级服务

主要启动以下10个服务:

  • Installer
  • DeviceIdentifiersPolicyService
  • UriGrantsManagerService
  • ActivityTaskManagerService
  • ActivityManagerService
  • PowerManagerService
  • ThermalManagerService
  • RecoverySystemService
  • LightsService
  • DisplayManagerService

启动完后,进入PHASE_WAIT_FOR_DEFAULT_DISPLAY=100, 即Phase100阶段

源码:

       ...
    //1.启动DeviceIdentifiersPolicyService
    mSystemServiceManager.startService(DeviceIdentifiersPolicyService.class);

    //2.启动UriGrantsManagerService
    mSystemServiceManager.startService(UriGrantsManagerService.Lifecycle.class);

    //3.启动ActivityTaskManagerService
    atm = mSystemServiceManager.startService(
                ActivityTaskManagerService.Lifecycle.class).getService();

    //4.启动PowerManagerService
    mPowerManagerService = mSystemServiceManager.startService(PowerManagerService.class);

    //5.启动ThermalManagerService
    mSystemServiceManager.startService(ThermalManagerService.class);

    //6.启动RecoverySystemService
    mSystemServiceManager.startService(RecoverySystemService.class);

    //7.启动LightsService
    mSystemServiceManager.startService(LightsService.class);

    //8.启动DisplayManagerService
    mDisplayManagerService = mSystemServiceManager.startService(DisplayManagerService.class);

    //执行回调函数 onBootPhase,把PHASE_WAIT_FOR_DEFAULT_DISPLAY=100, 传入各个service的 onBootPhase
    mSystemServiceManager.startBootPhase(SystemService.PHASE_WAIT_FOR_DEFAULT_DISPLAY);
       ...
}

5.2 PHASE 100 (阶段100):

定义:public static final int PHASE_WAIT_FOR_DEFAULT_DISPLAY = 100;

说明: 启动阶段-Boot Phase, 该阶段需要等待Display有默认显示

进入阶段PHASE_WAIT_FOR_DEFAULT_DISPLAY=100回调服务: onBootPhase(100)

流程:startBootPhase(100) -> onBootPhase(100)

从以下源码可以看到这里遍历了一下服务列表,然后回调到各服务的 onBootPhase() 方法中了。每个服务的onBootPhase()处理都不相同,这里不详细分析

源码:

public void startBootPhase(final int phase) {
        ...
        mCurrentPhase = phase;
        ...
        final int serviceLen = mServices.size();
        for (int i = 0; i < serviceLen; i++) {
            final SystemService service = mServices.get(i);
            ...
            try {
                service.onBootPhase(mCurrentPhase); // 轮训前面加过的service,把phase加入服务回调
            } catch (Exception ex) {
                ...
            }
            ...
        }
        ...
    }

创建以下80多个服务

  • BatteryService
  • UsageStatsService
  • WebViewUpdateService
  • CachedDeviceStateService
  • BinderCallsStatsService
  • LooperStatsService
  • RollbackManagerService
  • BugreportManagerService
  • GpuService
  • ....

5.3 PHASE 480 (阶段480):

定义:public static final int PHASE_LOCK_SETTINGS_READY = 480;

说明: 该阶段后, 服务可以获取到锁屏设置的数据了

480到500之间没有任何操作,直接进入500

5.4 PHASE 500 (阶段500):

定义:public static final int PHASE_SYSTEM_SERVICES_READY = 500;

说明:该阶段后,服务可以安全地调用核心系统服务,比如PowerManager或PackageManager。

启动以下两个服务:

  • PermissionPolicyService
  • eviceSpecificServices

5.5 PHASE 520 (阶段520):

定义:public static final int PHASE_DEVICE_SPECIFIC_SERVICES_READY = 520;

说明:在接收到这个引导阶段之后,服务可以安全地调用特定于设备的服务。

告诉AMS可以运行第三方代码,Making services ready

mActivityManagerService.systemReady()

5.6 PHASE 550 (阶段550):

定义:public static final int PHASE_ACTIVITY_MANAGER_READY = 550;

说明:该阶段后,服务可以接收到广播Intents

AMS启动native crash监控,启动SystemUI,其余服务调用systemReady()

1) AMS启动native crash监控:

mActivityManagerService.startObservingNativeCrashes();

2) 启动systemUI:

startSystemUi()

3) 其余服务调用systemReady():

  • networkManagementF.systemReady()
  • ipSecServiceF.systemReady();
  • networkStatsF.systemReady();
  • connectivityF.systemReady();
  • networkPolicyF.systemReady(networkPolicyInitReadySignal);

5.7 PHASE 600 (阶段600):

定义:public static final int PHASE_THIRD_PARTY_APPS_CAN_START = 600;

说明:该阶段后,服务可以启动/绑定到第三方应用程序。此时,应用程序将能够对服务进行绑定调用。

各种服务调用systemRunning方法:

  • locationF.systemRunning();
  • countryDetectorF.systemRunning();
  • networkTimeUpdaterF.systemRunning();
  • inputManagerF.systemRunning();
  • telephonyRegistryF.systemRunning();
  • mediaRouterF.systemRunning();
  • mmsServiceF.systemRunning();
  • incident.systemRunning();
  • touchEventDispatchServiceF.systemRunning();

5.8 PHASE 1000 (阶段1000):

定义:public static final int PHASE_BOOT_COMPLETED = 1000;

说明: 该阶段后,服务可以允许用户与设备交互。此阶段在引导完成且主应用程序启动时发生。

系统服务可能更倾向于监听此阶段,而不是为完成的操作注册广播接收器,以减少总体延迟。

在经过一系列流程,再调用AMS.finishBooting()时,则进入阶段Phase1000。

到此,系统服务启动阶段完成就绪,system_server进程启动完成则进入Looper.loop()状态,随时待命,等待消息队列MessageQueue中的消息到来,则马上进入执行状态。

6.服务分类

system_server进程启动的服务,从源码角度划分为引导服务、核心服务、其他服务3类。

引导服务 Boot Service (10个):

核心服务 Core Service(9个):

其他服务 Other Service(70个+):

7.总结

  • Zygote启动后fork的第一个进程为SystemServer,在手机中的进程别名为"system_server",主要用来启动系统中的服务
  • .Zygote fork后,进入SystemServer的main()
  • SystemServer在启动过程中,先初始化一些系统变量,加载类库,创建Context对象,创建SystemServiceManager对象等候再启动服务
  • 启动的服务分为 引导服务(Boot Service)、核心服务(Core Service)和其他服务(Other Service)三大类,共90多个服务
  • SystemServer在启动服务前,会尝试与Zygote建立Socket通信,通信成功后才去启动服务
  • 启动的服务都单独运行在SystemServer的各自线程中,同属于SystemServer进程
